Determining Short Between Circuits Location (Ms-Can): Notes

CAUTION:

• Perform the following malfunction diagnosis only when it is diagnosed with a short between circuits by CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW .)

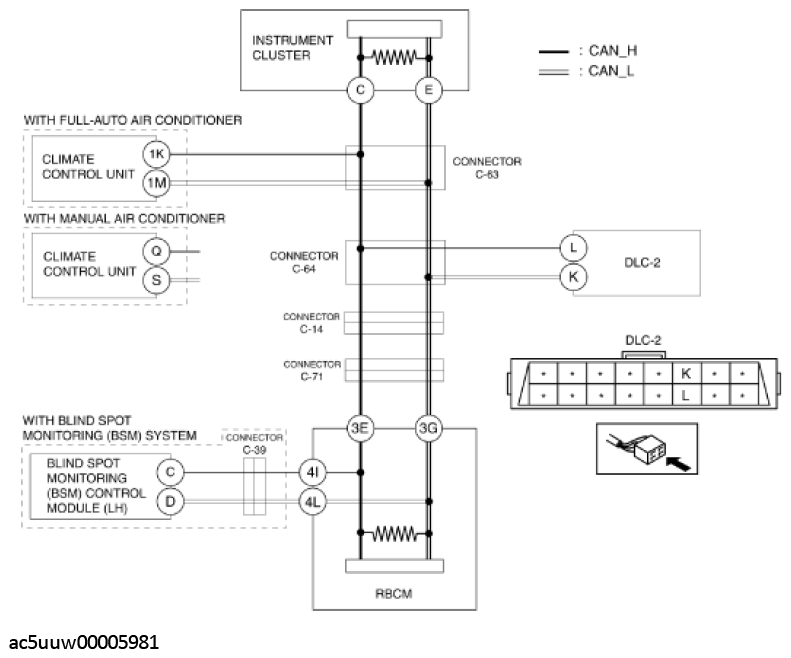

System Wiring Diagram

Fig 1: Checking Short Between Circuits Location (MS-CAN)

Courtesy of MAZDA MOTORS CORP.
