Determining Short Between Circuits Location (HS-Can): Notes

CAUTION:

• Perform the following malfunction diagnosis only when it is diagnosed with a short between circuits by CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW .)

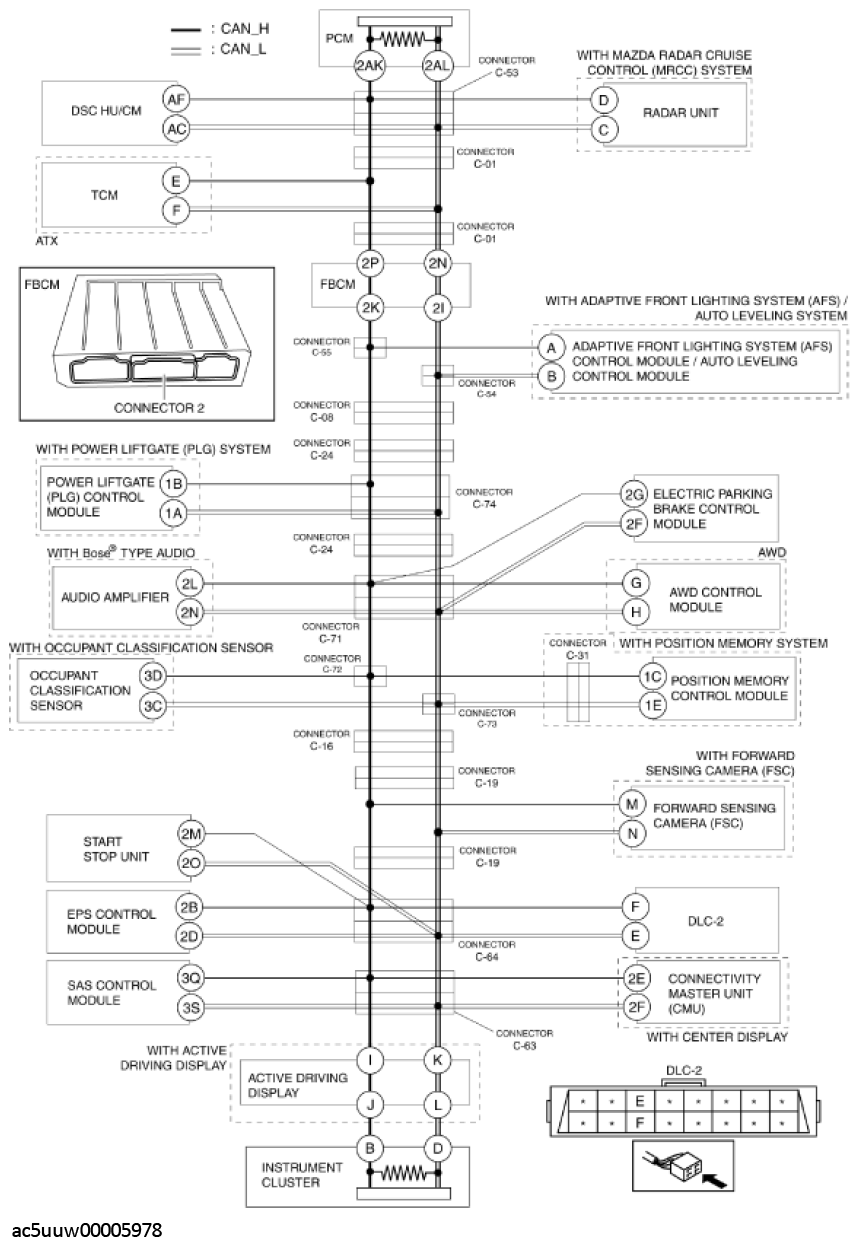

System wiring diagram

Fig 1: Rear Body Control Module (RBCM) Communication Diagram

Courtesy of MAZDA MOTORS CORP.
