Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion
• Open circuit in wiring harness between active driving display and connector C-63
• Connector C-63 malfunction
• CAN circuit in active driving display malfunction

System wiring diagram

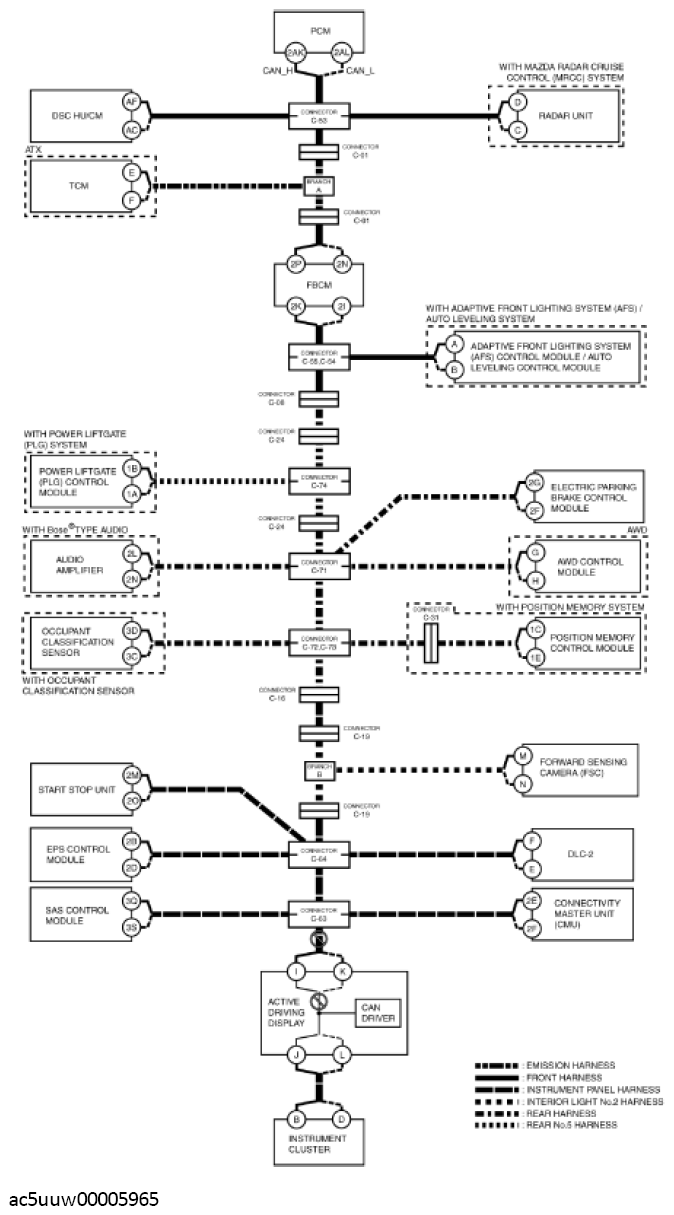

Fig 1: SAS Control Module Communication Diagram

Courtesy of MAZDA MOTORS CORP.
