MS-CAN signal waveform

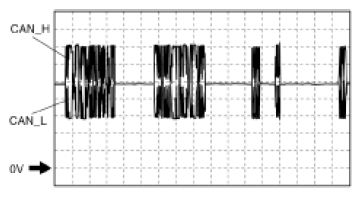

CAN circuit condition Signal waveform (reference)
Normal
G11432005
  • CAN_H
    • Connection terminal: DLC-2: terminal L (+) ↔ Body ground (-)
      • Oscilloscope setting: 0.5 V/DIV (Y), 1 ms/DIV (X), DC range
  • CAN_L
    • Connection terminal: DLC-2: terminal K (+) ↔ Body ground (-)
      • Oscilloscope setting: 0.5 V/DIV (Y), 1 ms/DIV (X), DC range
