Controller Area Network (Can) Malfunction Diagnosis Flow: Flowchart

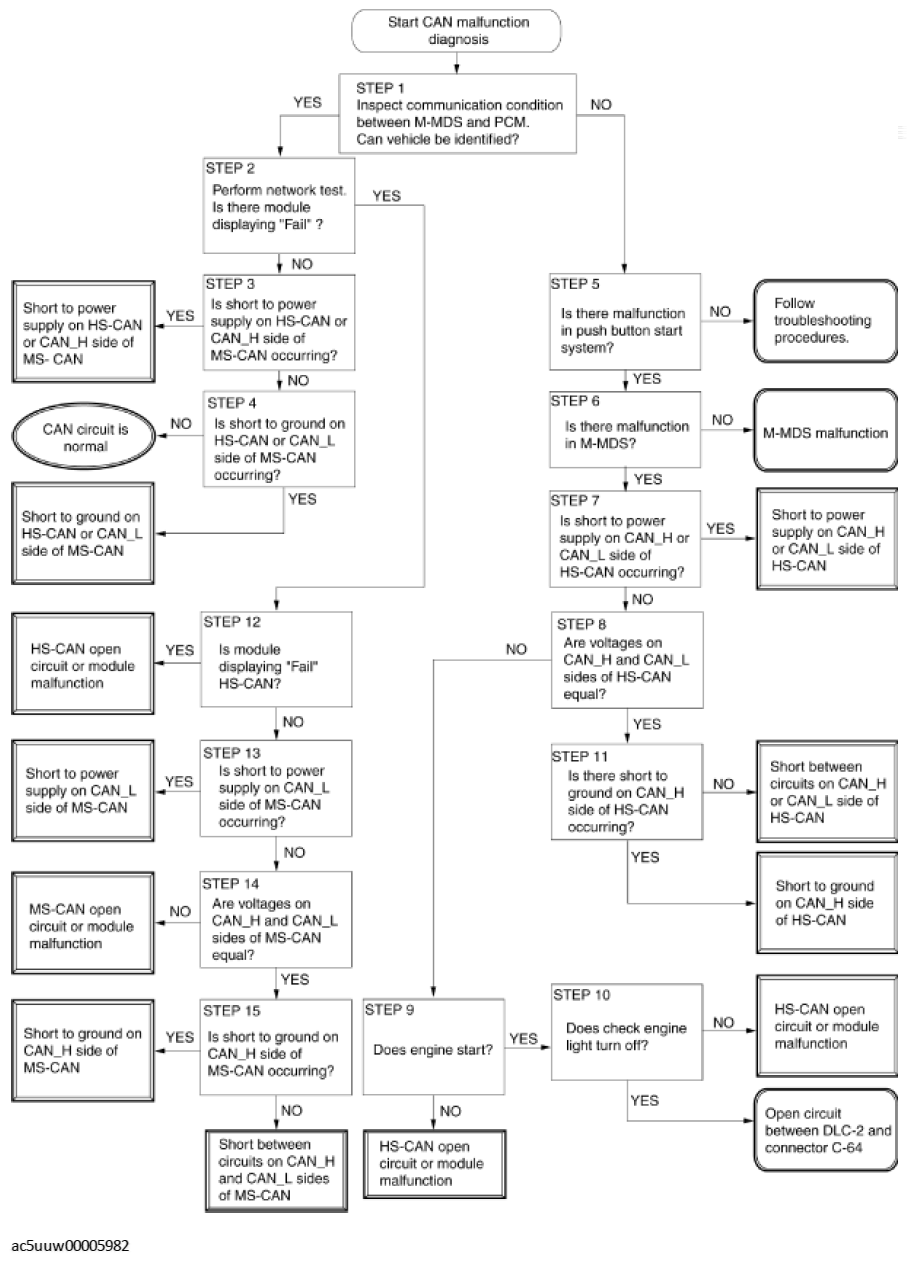

Fig 1: Controller Area Network (CAN) Malfunction Diagnosis Flowchart
G11432003Courtesy of MAZDA MOTORS CORP.
