On-Board Diagnostic Wiring Diagram [Front Body Control Module (FBCM)]

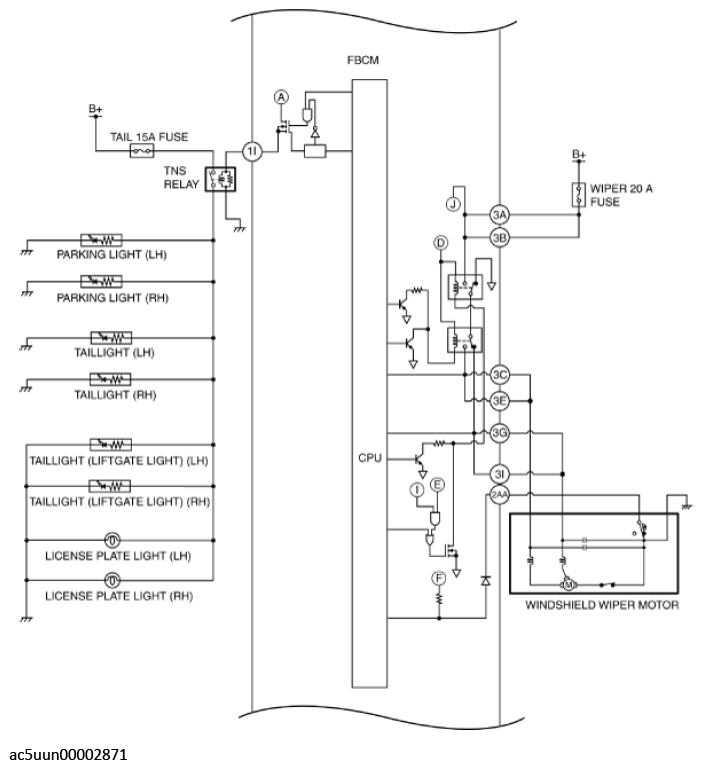

Fig 1: FBCM On-Board Diagnostic Wiring Diagram (1 Of 6)

Courtesy of MAZDA MOTORS CORP.

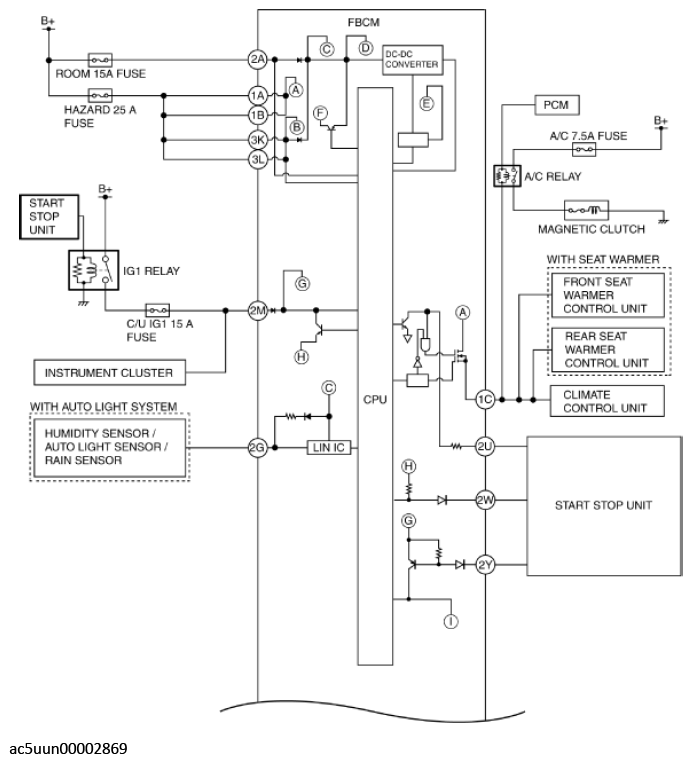

Fig 2: FBCM On-Board Diagnostic Wiring Diagram (2 Of 6)

Courtesy of MAZDA MOTORS CORP.

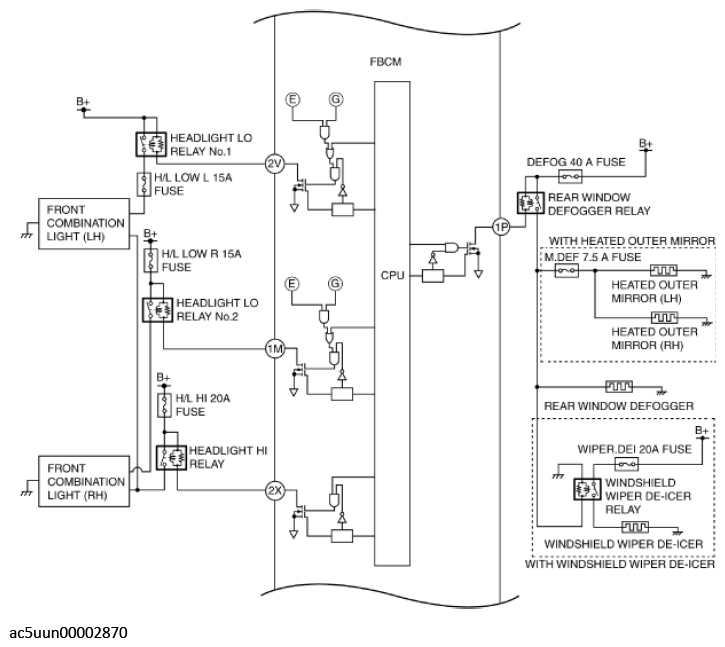

Fig 3: FBCM On-Board Diagnostic Wiring Diagram (3 Of 6)

Courtesy of MAZDA MOTORS CORP.

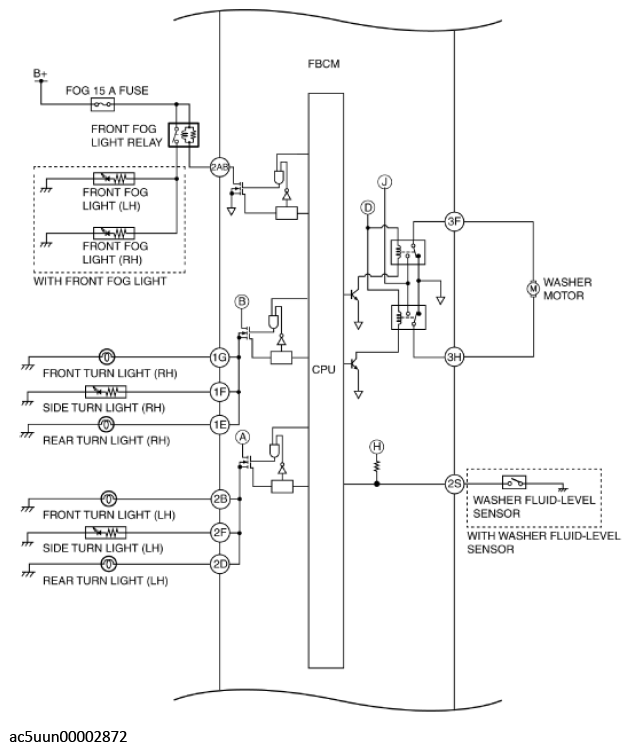

Fig 4: FBCM On-Board Diagnostic Wiring Diagram (4 Of 6)

Courtesy of MAZDA MOTORS CORP.

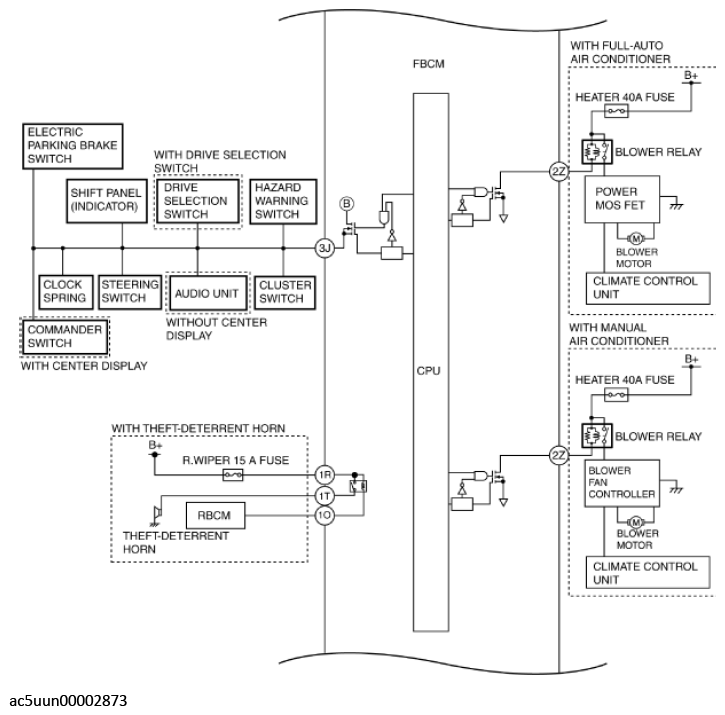

Fig 5: FBCM On-Board Diagnostic Wiring Diagram (5 Of 6)

Courtesy of MAZDA MOTORS CORP.

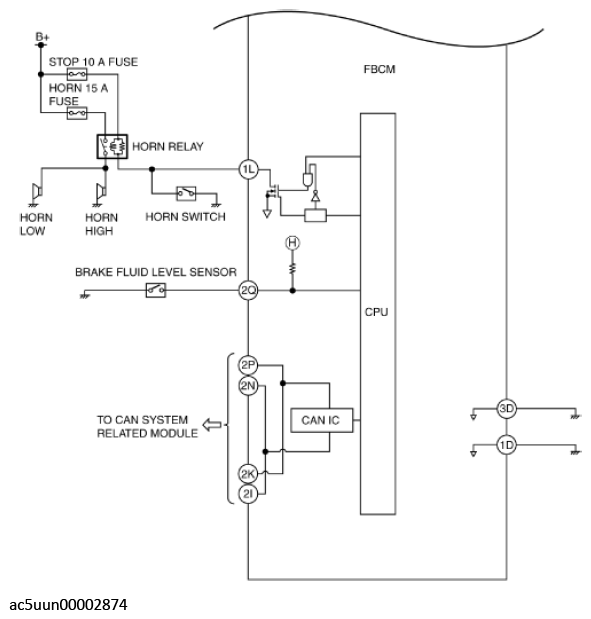

Fig 6: FBCM On-Board Diagnostic Wiring Diagram (6 Of 6)

Courtesy of MAZDA MOTORS CORP.
