DTC B1D06:11 [Front Body Control Module (FBCM)]: Notes
DTC B1D06:11 (FRONT BODY CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
Turn light (LH) circuit malfunction |
| Detection condition |
- Front body control module (FBCM) detects a short to ground in the turn light (LH) circuit with the ignition switched ON (engine off or on).
|
| Fail-safe function |
Not applicable |
| Possible cause |
- Front body control module (FBCM) connector or terminal malfunction
- Front turn light bulb (LH) malfunction
- Front combination light (LH) connector or terminal malfunction

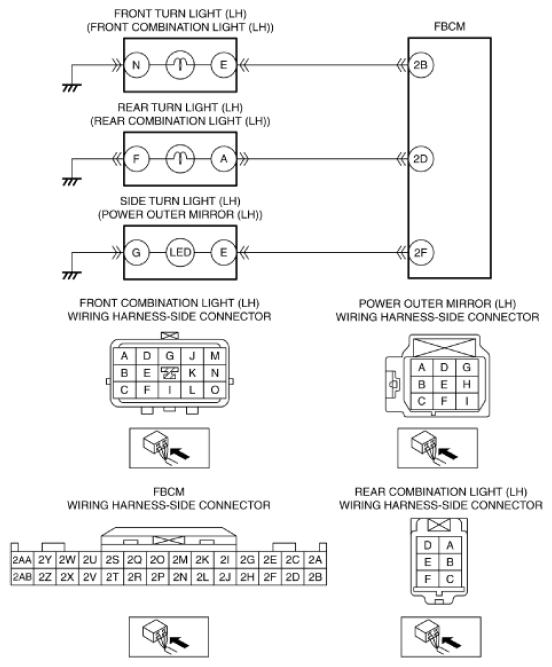

- Short to ground in wiring harness between front combination light (LH) terminal E and front body control module (FBCM) terminal 2B
- Rear turn light bulb (LH) malfunction
- Rear combination light (LH) connector or terminal malfunction
- Short to ground in wiring harness between rear combination light (LH) terminal A and front body control module (FBCM) terminal 2D
- Power outer mirror (LH) connector or terminal malfunction
- Side turn light (LH) malfunction
- Short to ground in wiring harness between power outer mirror (LH) terminal E and front body control module (FBCM) terminal 2F
- Front body control module (FBCM) malfunction
|
|
|
