DTC B1C84:14 [Front Body Control Module (FBCM)]: Notes
DTC B1C84:14 (FRONT BODY CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
Rear window defogger relay circuit malfunction |
| Detection condition |
- Front body control module (FBCM) detects an open circuit or short to ground in the rear window defogger relay circuit with the ignition switched ON (engine off or on).
|
| Fail-safe function |
Not applicable |
| Possible cause |
- Rear window defogger relay malfunction
- Front body control module (FBCM) connector or terminal malfunction

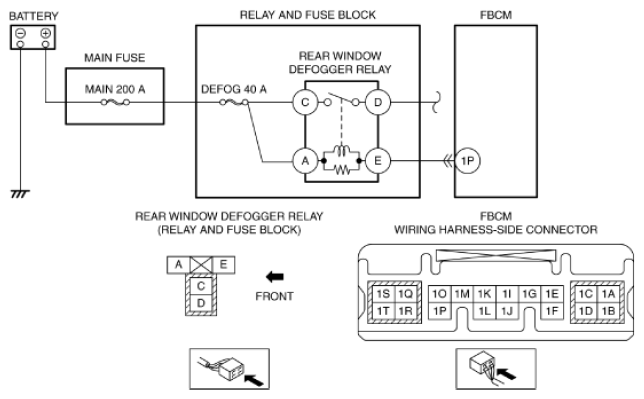

- Short to ground in wiring harness between rear window defogger relay terminal E and front body control module (FBCM) terminal 1P
- Open circuit in wiring harness between rear window defogger relay terminal E and front body control module (FBCM) terminal 1P
- Front body control module (FBCM) malfunction
|
|
|
