DTC B141E:12 [Front Body Control Module (FBCM)]: Notes
DTC B141E:12 (FRONT BODY CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
Headlight LO relay No. 2 circuit malfunction |
| Detection condition |
- Front body control module (FBCM) detects a short to power supply in the headlight LO relay No. 2 circuit with the ignition switched ON (engine off or on).
|
| Fail-safe function |
Not applicable |
| Possible cause |
- Headlight LO relay No. 2 malfunction
- Front body control module (FBCM) connector or terminal malfunction

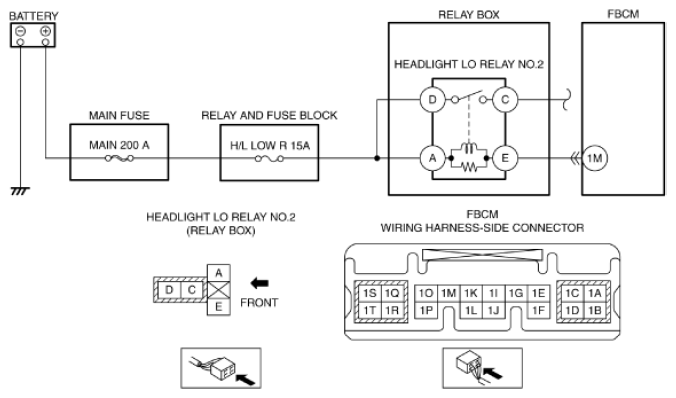

- Short to power supply in the wiring harness between headlight LO relay No. 2 terminal E and front body control module (FBCM) terminal 1M
- Front body control module (FBCM) malfunction
|
|
|
