DTC B1088:88 [Front Body Control Module (FBCM)]: Notes
DTC B1088:88 (FRONT BODY CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
LIN communication error |
| Detection condition |
- LIN bus communication line malfunction detected for 1 s or more
|
| Fail-safe function |
Holding the previous value |
| Possible cause |
- Malfunction in LIN bus communication line

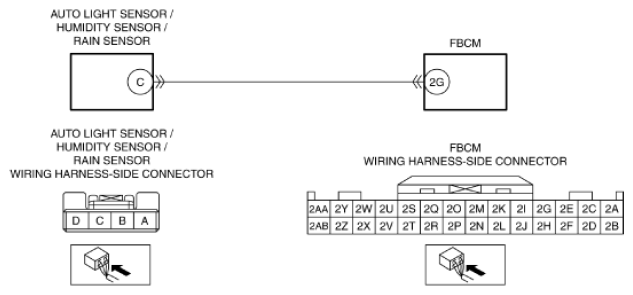

- Auto light sensor/humidity sensor/rain sensor terminal C-Front body control module (FBCM) terminal 2G
- Auto light sensor/humidity sensor/rain sensor malfunction
- Front body control module (FBCM) malfunction
|
|
|
