Troubleshooting Procedure: Notes

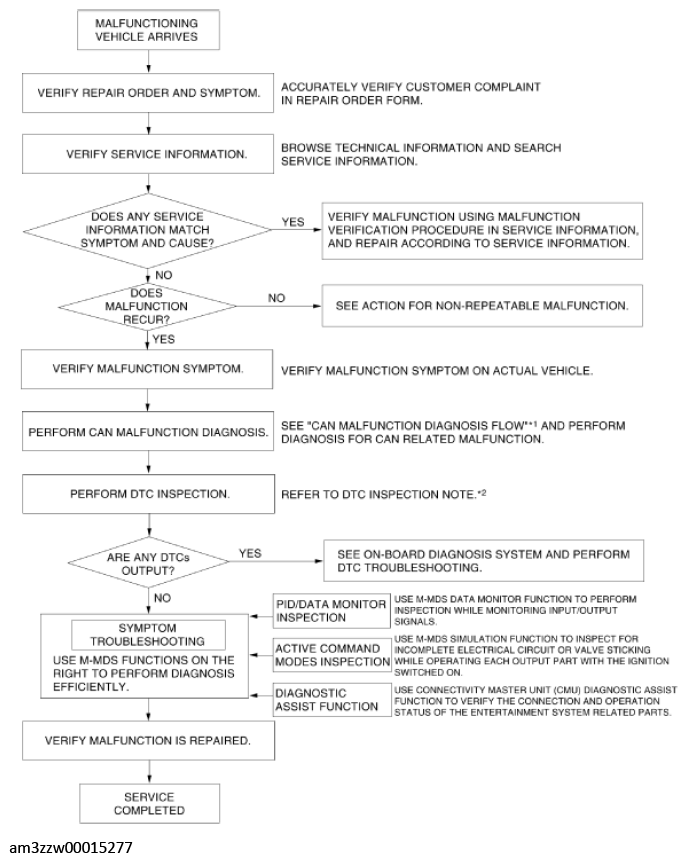

Fig 1: Vehicle Malfunction Troubleshooting Flow Chart

Courtesy of MAZDA MOTORS CORP.

*1: (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW .)

*2: (See DTC Inspection Note.)
