DTC B1252:09 [Connectivity Master Unit]: Notes
DTC B1252:09 (CONNECTIVITY MASTER UNIT) DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
Auxiliary jack/USB port/SD card slot hub circuit malfunction |
| Detection condition |
- With the ignition switched ON (engine off or on), the connectivity master unit (CMU) detects a voltage value for the auxiliary jack/USB port/SD card slot hub circuit of within 4.8 V or exceeding 5.2 V.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Auxiliary jack/USB port/SD card slot hub connector or terminal malfunction
- Connectivity master unit (CMU) connector or terminal malfunction

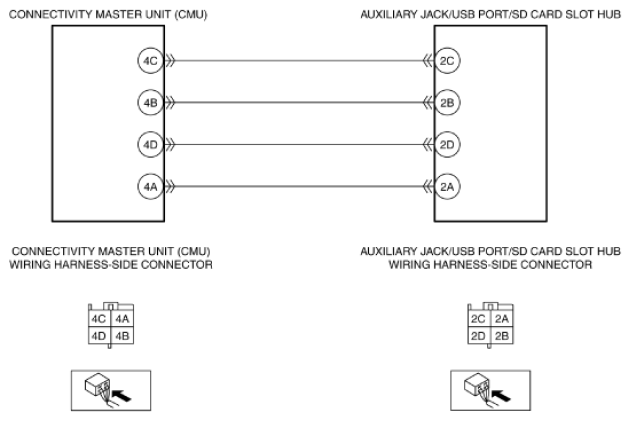

- Short to ground in wiring harness between connectivity master unit (CMU) terminal 4C and auxiliary jack/USB port/SD card slot hub terminal 2C
- Short to power supply in wiring harness between connectivity master unit (CMU) terminal 4C and auxiliary jack/USB port/SD card slot hub terminal 2C
- Open circuit in wiring harness between connectivity master unit (CMU) terminal 4C and auxiliary jack/USB port/SD card slot hub terminal 2C
- Auxiliary jack/USB port/SD card slot hub malfunction
- Connectivity master unit (CMU) malfunction
|
|
|
