DTC B1238:87 [Connectivity Master Unit]: Notes
DTC B1238:87 (CONNECTIVITY MASTER UNIT) DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
RDS traffic information transfer circuit malfunction |
| Detection condition |
- The connectivity master unit (CMU) detects a communication error in the RDS traffic information transfer circuit for 20 times with the ignition switched ON (engine off or on).
|
| Fail-safe |
Not applicable |
| Possible cause |
- Tuner and amp unit (TAU) connector or terminal malfunction
- Connectivity master unit (CMU) connector or terminal malfunction

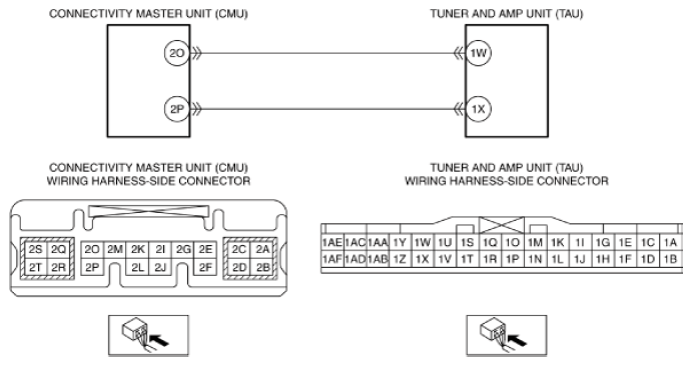

- Short to ground in wiring harness between the following terminals:
- Connectivity master unit (CMU) terminal 2O and tuner and amp unit (TAU) terminal 1W
- Connectivity master unit (CMU) terminal 2P and tuner and amp unit (TAU) terminal 1X
- Short to power supply in wiring harness between the following terminals:
- Connectivity master unit (CMU) terminal 2O and tuner and amp unit (TAU) terminal 1W
- Connectivity master unit (CMU) terminal 2P and tuner and amp unit (TAU) terminal 1X
- Open circuit in wiring harness between the following terminals:
- Connectivity master unit (CMU) terminal 2O and tuner and amp unit (TAU) terminal 1W
- Connectivity master unit (CMU) terminal 2P and tuner and amp unit (TAU) terminal 1X
- Tuner and amp unit (TAU) malfunction
- Connectivity master unit (CMU) malfunction
|
|
|
