DTC B11BA:11 [Connectivity Master Unit]: Notes
DTC B11BA:11 (CONNECTIVITY MASTER UNIT) DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
Steering switch circuit malfunction |
| Detection condition |
- The connectivity master unit (CMU) detected a short to ground in the steering switch circuit for 5 s or more with the ignition switched ON (engine off or on).
|
| Fail-safe |
Not applicable |
| Possible cause |
- Clock spring connector or terminal malfunction
- Connectivity master unit (CMU) connector or terminal malfunction
- Clock spring malfunction

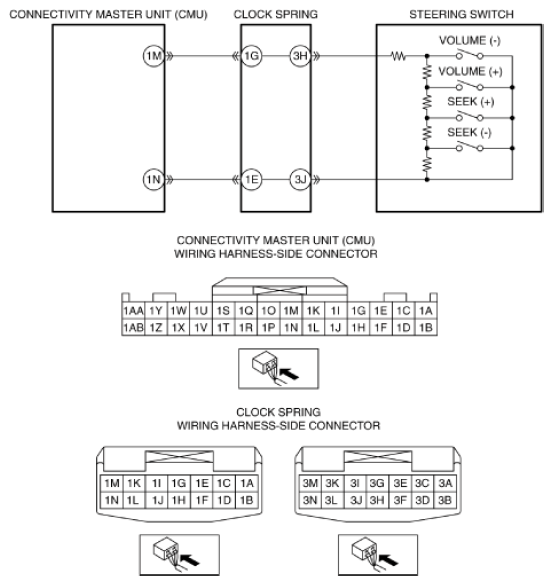

- Short to ground in wiring harness between connectivity master unit (CMU) terminal 1M and clock spring terminal 1G
- Steering switch malfunction
- Connectivity master unit (CMU) malfunction
|
|
|
