DTC B119F:1D [Connectivity Master Unit]: Notes
DTC B119F:1D (CONNECTIVITY MASTER UNIT) DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
GPS antenna circuit malfunction |
| Detection condition |
- The connectivity master unit (CMU) detects a current value in the GPS antenna circuit of (31 mA or more) with the ignition switched ON (engine off or on).
|
| Fail-safe |
Not applicable |
| Possible cause |
- GPS antenna connector or terminal malfunction
- Connectivity master unit (CMU) connector or terminal malfunction

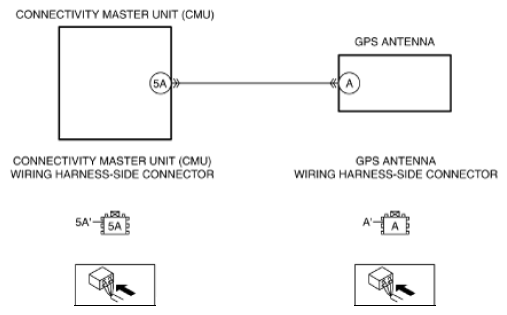

- Short to ground in wiring harness between connectivity master unit (CMU) terminal 5A and GPS antenna terminal A
- GPS antenna malfunction
- Connectivity master unit (CMU) malfunction
|
|
|
