DTC B116A:92 [Connectivity Master Unit]: Notes
DTC B116A:92 (CONNECTIVITY MASTER UNIT) DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
Microphone circuit malfunction |
| Detection condition |
- The connectivity master unit (CMU) detected microphone circuit voltage of less than 7.7 V or more than 8.6 V with the ignition switched ON (engine off or on).
|
| Fail-safe |
Not applicable |
| Possible cause |
- Microphone connector or terminal malfunction
- Connectivity master unit (CMU) connector or terminal malfunction

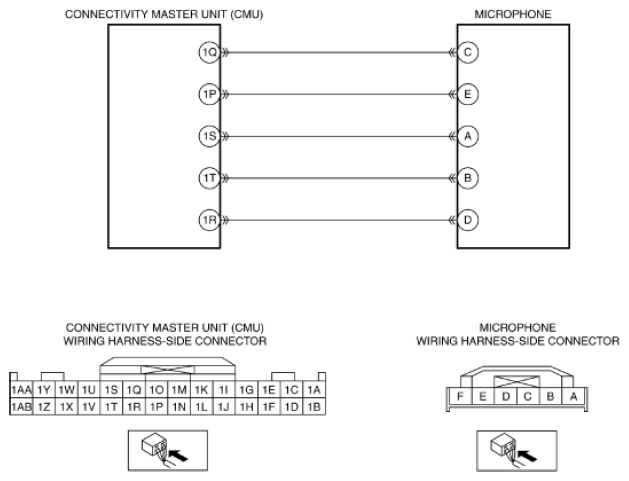

- Short to ground in wiring harness between connectivity master unit (CMU) terminal 1Q and microphone terminal C
- Short to power supply in wiring harness between connectivity master unit (CMU) terminal 1Q and microphone terminal C
- Open circuit in wiring harness between connectivity master unit (CMU) terminal 1Q and microphone terminal C
- Microphone malfunction
- Connectivity master unit (CMU) malfunction
|
|
|
