DTC B108E:87 [Connectivity Master Unit]: Notes
DTC B108E:87 (CONNECTIVITY MASTER UNIT) DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
Center display circuit malfunction |
| Detection condition |
- The connectivity master unit (CMU) cannot receive a signal from the center display for 5 s or more with the ignition switched ON (engine off or on).
|
| Fail-safe |
Not applicable |
| Possible cause |
- Center display connector or terminal malfunction
- Connectivity master unit (CMU) connector or terminal malfunction

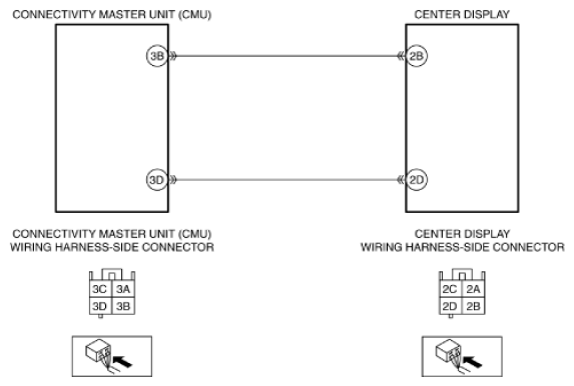

- Short to ground in wiring harness between the following terminals:
- Connectivity master unit (CMU) terminal 3B and center display terminal 2B
- Connectivity master unit (CMU) terminal 3D and center display terminal 2D
- Short to power supply in wiring harness between the following terminals:
- Connectivity master unit (CMU) terminal 3B and center display terminal 2B
- Connectivity master unit (CMU) terminal 3D and center display terminal 2D
- Open circuit in wiring harness between the following terminals:
- Connectivity master unit (CMU) terminal 3B and center display terminal 2B
- Connectivity master unit (CMU) terminal 3D and center display terminal 2D
- Center display malfunction
- Connectivity master unit (CMU) malfunction
|
|
|
