Power door lock system (Setting method by operation of door lock switch)
- The following setting can be changed by operation of the door lock switch.
| M-MDS display | Function | Initial setting | Setting contents | Control unit |
|---|---|---|---|---|
| Auto Door Lock Mode. | Auto door lock function can be changed. | Lock: Driving, Unlock: IGN Off. | OFF/Lock When Driving./Lock: Driving, Unlock: IGN Off./Lock When Shifting Out Of P./Lock: Shift From P, Unlock: In P./Lock: When Driving, Unlock: In Park. | Rear body control module (RBCM) |

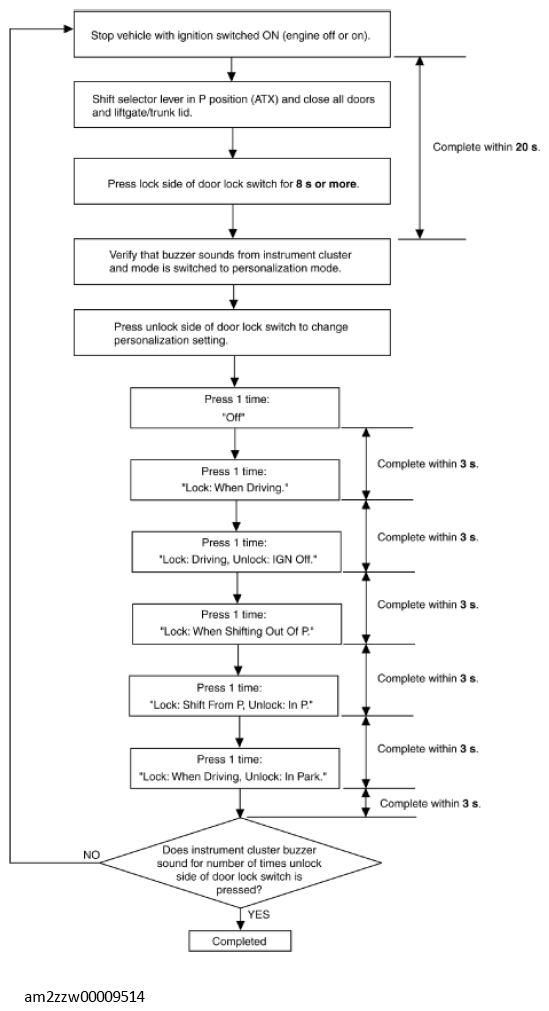

- Change the setting for the auto door lock referring to the following procedure:
NOTE:
- If any of the following conditions is met during procedure, the setting change for the auto door lock is stopped.
- Lock side of the door lock switch is pressed while in the personalization mode.
- Unlock side of the door lock switch is pressed 7 times while in the personalization mode. (ATX)
- Unlock side of the door lock switch is pressed 4 times while in the personalization mode. (MTX)
