Infotainment
>>
On-Board Diagnostic - Audio
>>
On-Board Diagnostic Wiring Diagram [Audio Unit]
On-Board Diagnostic Wiring Diagram [Audio Unit]

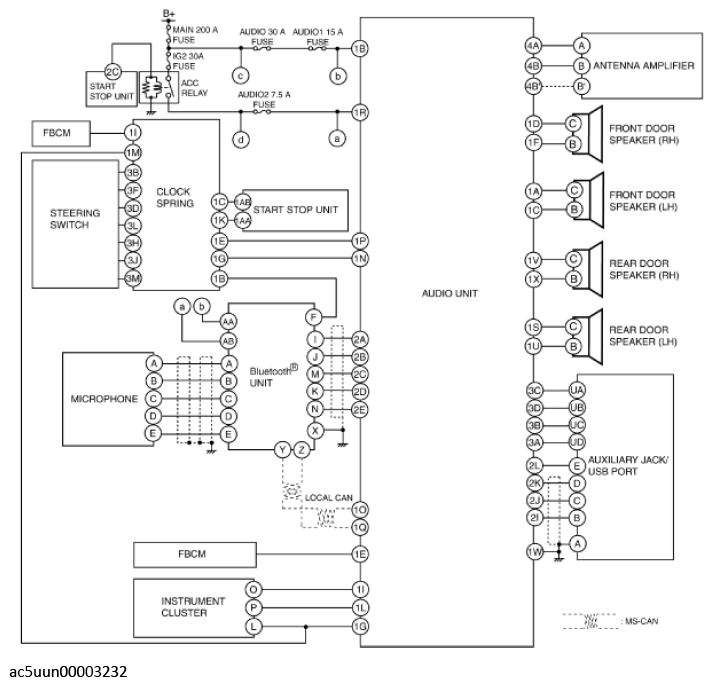

Fig 1: On-Board Diagnostic Wiring Diagram (Audio Unit)
Courtesy of MAZDA MOTORS CORP.
