Canister Vent (CV) Solenoid Valve Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove in the order indicated in the table.

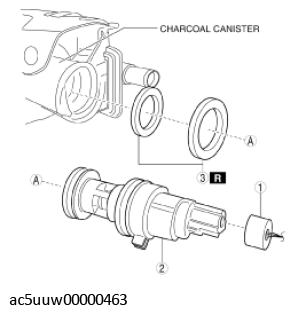

    Fig 1: CV Solenoid Valve, Connector And O-Ring
    G11435665Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 CV solenoid valve connector
    2 CV solenoid valve
    3 O-ring
  3. Install in the reverse order of removal.
