Front Door Trim Removal/Installation

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the power window main switch (driver-seat) or the power window subswitch (front passenger-seat). (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)

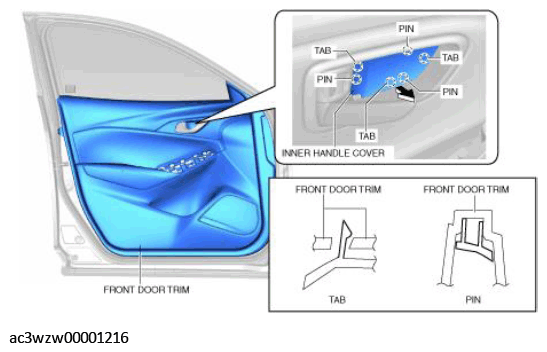

Remove the inner handle cover while detach tabs, pins.

Fig 1: Removing Inner Handle Cover
Courtesy of MAZDA MOTORS CORP.

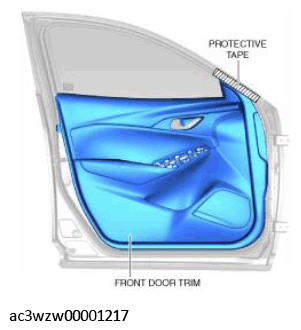

Affix protective tape to the shaded position shown in the figure.

Fig 2: Affixing Protective Tape To Shaded Position
Courtesy of MAZDA MOTORS CORP.

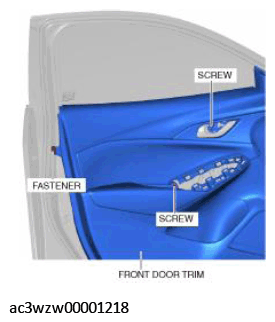

Remove the fastener and screws.

Fig 3: Removing Fastener And Screws
Courtesy of MAZDA MOTORS CORP.

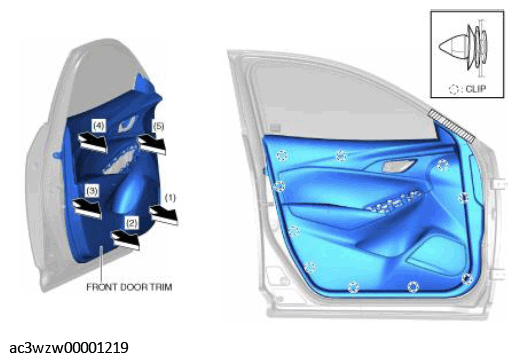

Pull the front door trim in the order of the arrows shown in the figure and remove the clips.

Fig 4: Pulling Front Door Trim
Courtesy of MAZDA MOTORS CORP.

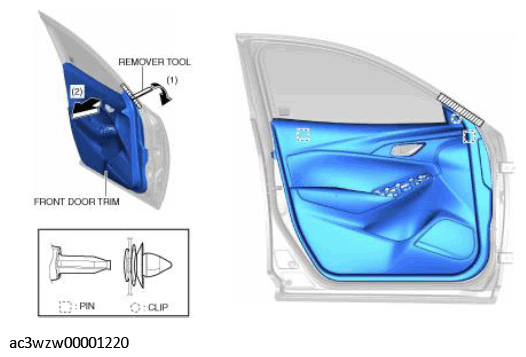

Insert the remover tool into the position shown in the figure, move it in the direction of arrow (1), and detach the clip.

Fig 5: Inserting Remover Tool Into Position
Courtesy of MAZDA MOTORS CORP.
Pull the pins out of the front door in the direction of arrow (2) shown in the figure and remove the front door trim.
Install in the reverse order of removal.
