Rear Under Cover Removal/Installation

  1. Remove the fasteners.

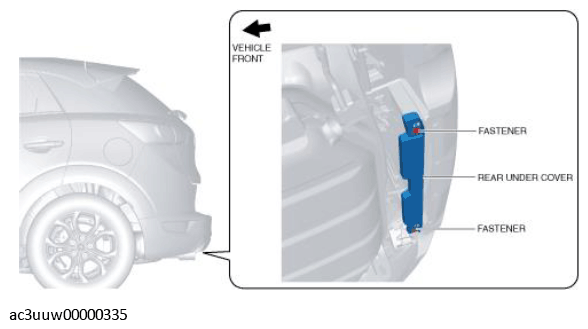

    Fig 1: Removing Rear Under Cover Fasteners
    G11434184Courtesy of MAZDA MOTORS CORP.
  2. Remove the rear under cover.
  3. Install in the reverse order of removal.
