Rear Splash Shield Removal/Installation

  1. Remove the rear over fender. (See REAR OVER FENDER REMOVAL/INSTALLATION .)
  2. Remove the screws and fasteners.

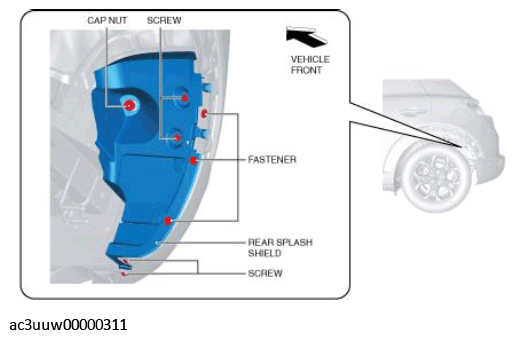

    Fig 1: Removing Rear Splash Shield Screws And Fasteners
    G11434171Courtesy of MAZDA MOTORS CORP.
  3. Remove the cap nut.
  4. Pull the rear splash shield in the direction of the arrows shown in the figure and detach the rear splash shield tabs.

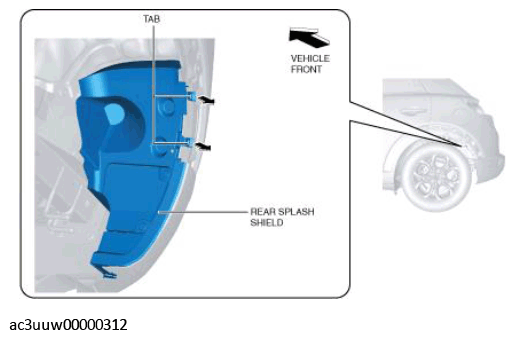

    Fig 2: Detaching Rear Splash Shield Tabs
    G11434172Courtesy of MAZDA MOTORS CORP.
  5. Remove the rear splash shield.
  6. Install in the reverse order of removal.
