Rear Deflector Removal/Installation

  1. Remove the bolts and fasteners.

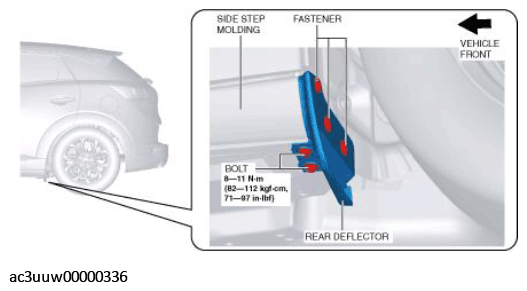

    Fig 1: Removing Rear Deflector Bolts And Fasteners
    G11434154Courtesy of MAZDA MOTORS CORP.
  2. Remove the rear deflector.
  3. Install in the reverse order of removal.
