Front Mudguard Removal/Installation

Remove the front deflector. (See FRONT DEFLECTOR REMOVAL/INSTALLATION .)

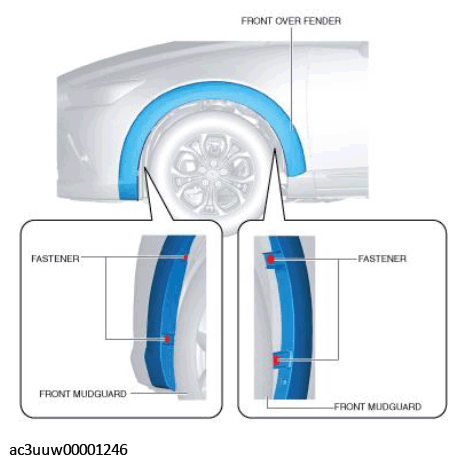

Remove the fasteners.

Fig 1: Installing Front Mudguard Fasteners
Courtesy of MAZDA MOTORS CORP.

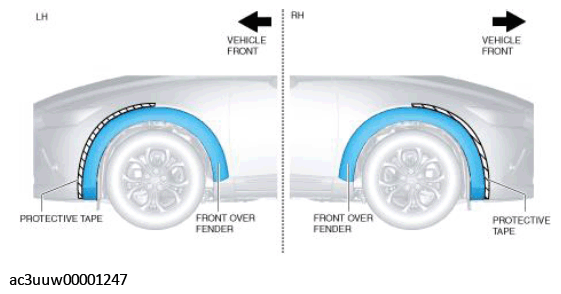

Affix the protective tape to the position shown in the figure to prevent scratches and damage.

Fig 2: Affixing Protective Tape
Courtesy of MAZDA MOTORS CORP.

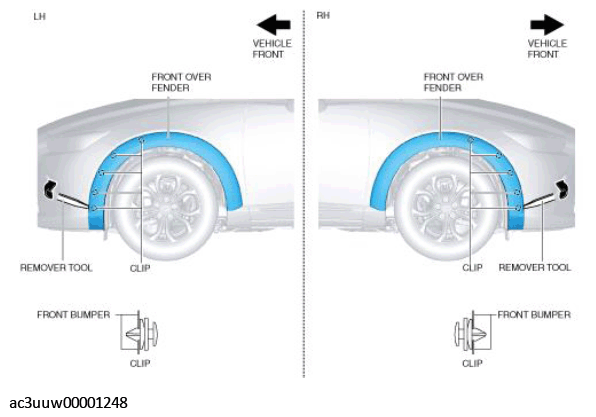

Move the remover tool in the direction of the arrow shown in the figure and detach the front over fender clips from the front bumper.

Fig 3: Detaching Front Over Fender Clips From Front Bumper
Courtesy of MAZDA MOTORS CORP.

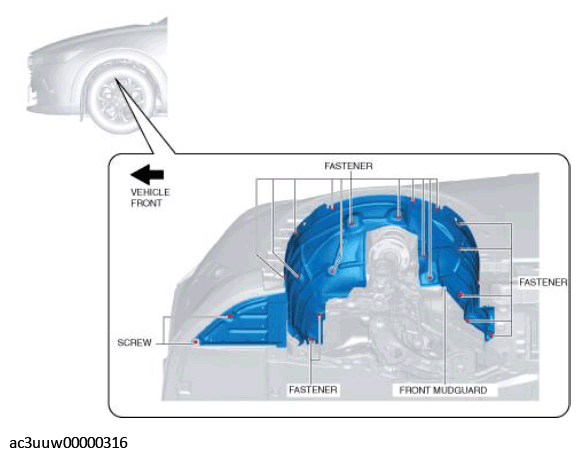

Remove the screws and fasteners.

Fig 4: Removing Screws And Fasteners
Courtesy of MAZDA MOTORS CORP.

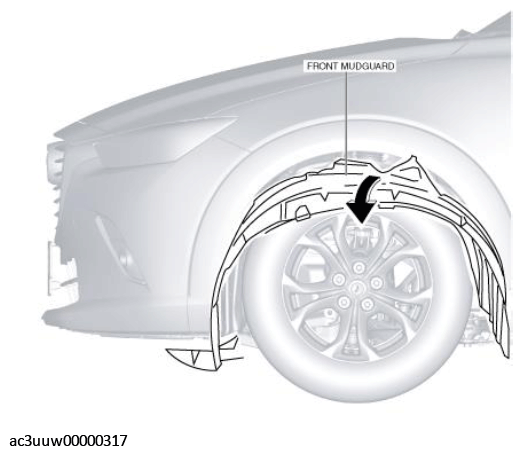

Pull the front mudguard in the direction of the arrow shown in the figure and remove it.

Fig 5: Pulling Front Mudguard
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
