Washer Motor Removal/Installation

NOTE:

If the procedure is performed with washer fluid in the washer tank, the washer fluid may leak out. When performing the procedure, place a container under the washer tank to collect washer fluid, and perform the procedure.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the front bumper. (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)
Disconnect the connector.

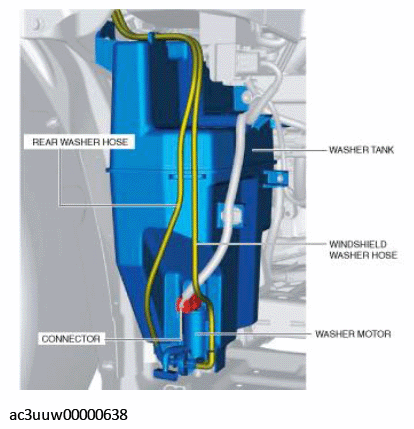

Fig 1: Disconnecting Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the washer hose from the washer motor.
Remove the washer motor.

Fig 2: Removing Washer Motor
Courtesy of MAZDA MOTORS CORP.
Remove the grommet.
Install in the reverse order of removal.
