Audio Amplifier Removal/Installation

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Slide the seat rearward (RH).
Remove the fasteners.

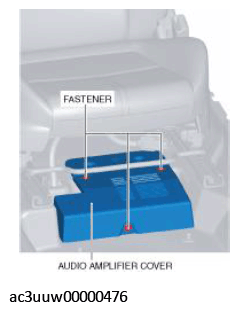

Fig 1: Installing Audio Amplifier Fasteners
Courtesy of MAZDA MOTORS CORP.
Remove the audio amplifier cover.
Remove the bolts.

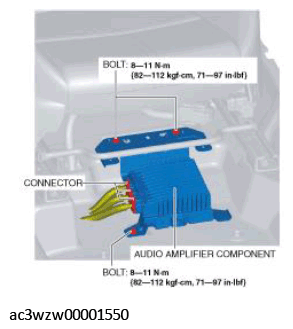

Fig 2: Removing Audio Amplifier Component Bolts
Courtesy of MAZDA MOTORS CORP.
Disconnect the connectors.
Remove the audio amplifier component.
Remove the nuts.

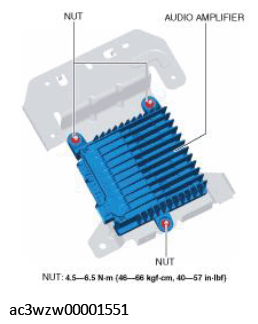

Fig 3: Removing Audio Amplifier Nuts
Courtesy of MAZDA MOTORS CORP.
Remove the audio amplifier.
Install in the reverse order of removal.
