Lateral runout inspection

Remove the rear brake caliper component and suspend it out of the way using a cable. (See REAR BRAKE DISC REMOVAL/INSTALLATION .)

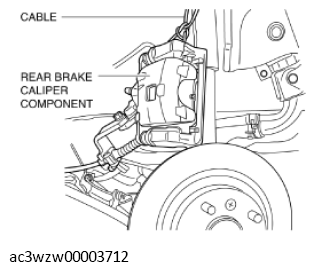

Fig 1: Removing Rear Brake Caliper Component
Courtesy of MAZDA MOTORS CORP.
Set the dial gauge on the inner side 10 mm {0.39 in} from the outer edge using a magnetic base and dial gauge.

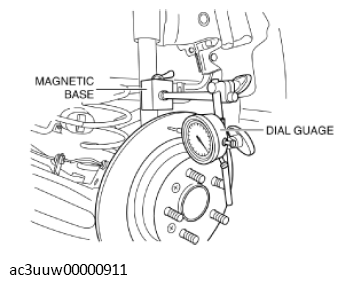

Fig 2: Setting Dial Gauge On Inner Side
Courtesy of MAZDA MOTORS CORP.
Rotate the disc plate one time and measure the runout.
Rear disc plate runout limit

0.1 mm {0.004 in}
