System Wiring Diagram [Seat Warmer System]

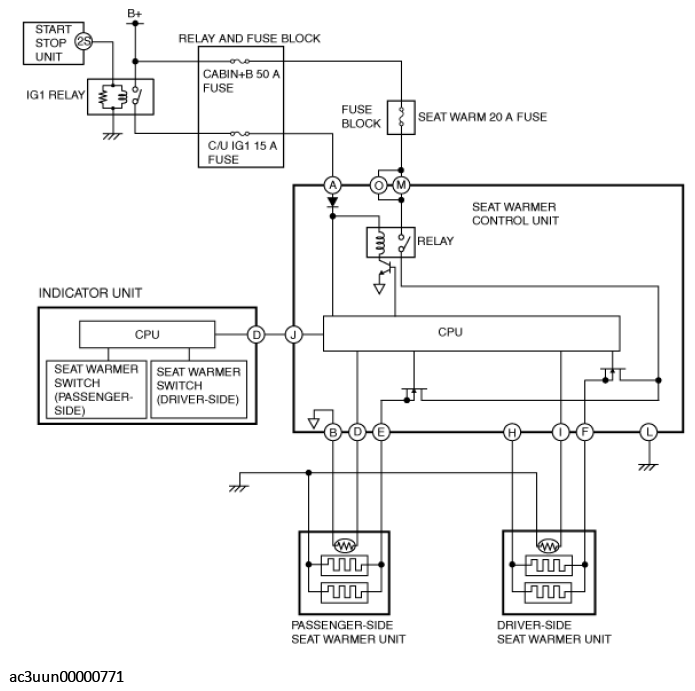

Fig 1: Seat Warmer System Wiring Diagram

G11430455

Courtesy of MAZDA MOTORS CORP.
