Roof Molding Removal

  1. Insert the remover tool in the position shown in the figure.

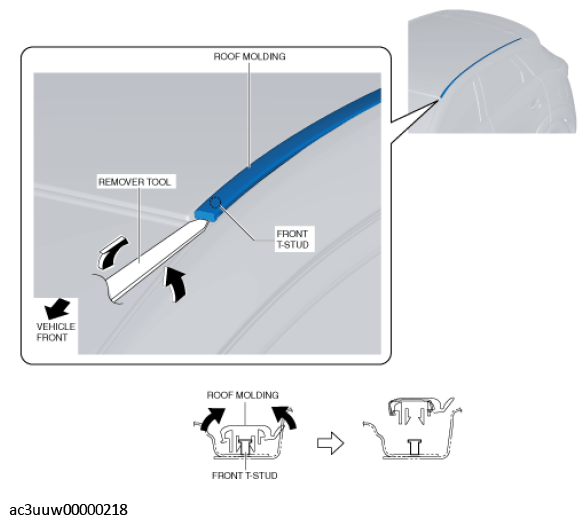

    Fig 1: Inserting Roof Molding Remover Tool
    G11434192Courtesy of MAZDA MOTORS CORP.
  2. Move the remover tool in the direction of the arrows shown in the figure and detach the roof molding from the front T-stud.
  3. Rotate the roof molding in the direction of arrows shown in the figure while pulling it up and remove it starting from the clips at the front of the vehicle.

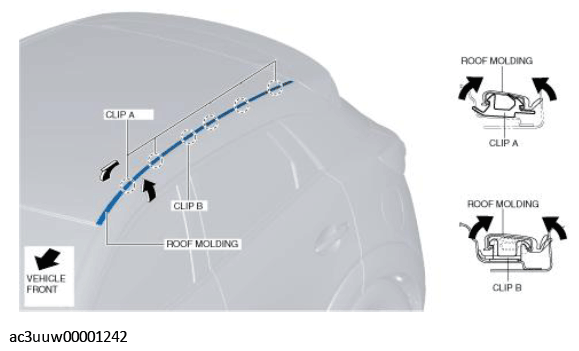

    Fig 2: Rotating Roof Molding
    G11434193Courtesy of MAZDA MOTORS CORP.
  4. Insert the remover tool in the position shown in the figure.

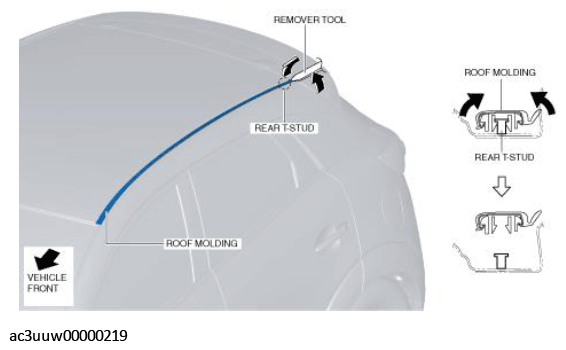

    Fig 3: Detaching Roof Molding From Rear T-Stud
    G11434194Courtesy of MAZDA MOTORS CORP.
  5. Move the remover tool in the direction of the arrows shown in the figure and detach the roof molding from the rear T-stud.
  6. Remove the roof molding.
