Pillar Garnish Removal

  1. Fully open the liftgate.
  2. Affix protective tape to the position shown in the figure.

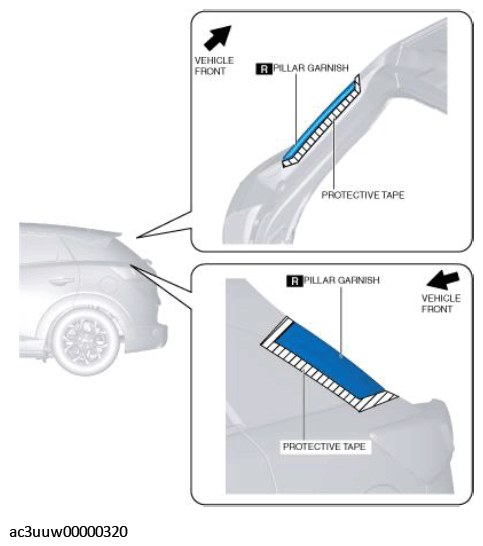

    Fig 1: Affixing Protective Tape
    G11434140Courtesy of MAZDA MOTORS CORP.
  3. Insert a remover tool in the position shown in the figure.

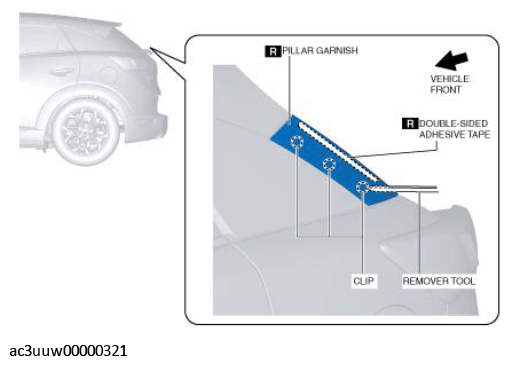

    Fig 2: Inserting Pillar Garnish Remover Tool
    G11434141Courtesy of MAZDA MOTORS CORP.
  4. Move the remover tool in the direction of the arrow shown in the figure and while peeling off the double-sided adhesive tape, detach the pillar garnish clips (1), (2) and (3) from the body starting from the vehicle rear.

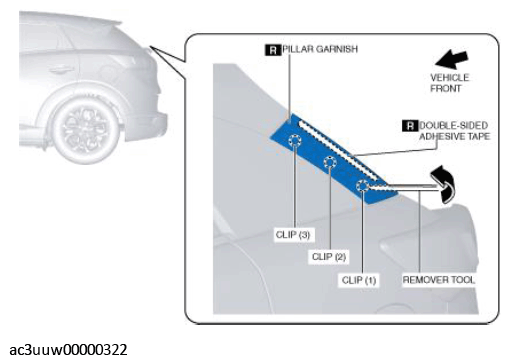

    Fig 3: Detaching Pillar Garnish Clips
    G11434142Courtesy of MAZDA MOTORS CORP.
  5. Remove the pillar garnish.
