DTC U2013-13; Cluster Switch Circuit Malfunction: Notes

Description	Cluster switch circuit malfunction
Detection condition	Instrument cluster detects an open circuit in the cluster switch circuit for 5 s or more with the ignition switched ON (engine off or on).
Fail-safe	Not applicable

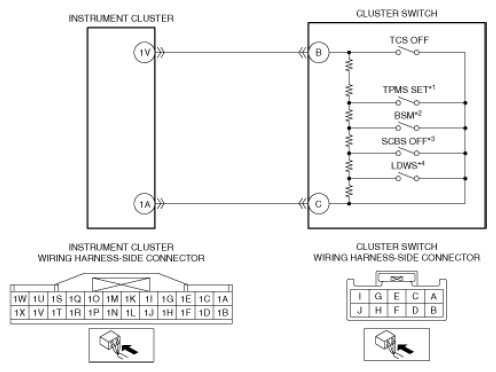

Possible cause	Cluster switch connector or terminal malfunction Instrument cluster connector or terminal malfunction Open circuit in wiring harness between the following terminals: Instrument cluster terminal 1V-Cluster switch terminal B Instrument cluster terminal 1A-Cluster switch terminal C Cluster switch malfunction Instrument cluster malfunction

*1: With tire pressure monitoring system (TPMS)

*2: With blind spot monitoring (BSM) system

*3: With smart city brake support (SCBS)

*4: With lane departure warning system (LDWS)
