Wheel house height measurement procedure

  1. Adjust the SST (plum bob) so that it crosses the center of the wheel and identify the center position of the wheel house.

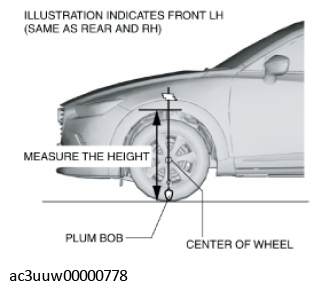

    Fig 1: Checking Wheel House Height
    G11438383Courtesy of MAZDA MOTORS CORP.
  2. Measure the height from the uppermost part of the wheel house to the floor.
