DTC B1D03-11; Headlight HI (RH) circuit Malfunction: Notes
DTC B1D03-11; HEADLIGHT HI (RH) CIRCUIT MALFUNCTION - DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Headlight HI (RH) circuit malfunction |
| Detection condition |
- Electrical supply unit (ESU) detects a short to ground in the Headlight HI (RH) circuit.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Electrical supply unit (ESU) connector or terminal malfunction
- Headlight HI/LO bulb (RH) malfunction
- Front combination light (RH) connector or terminal malfunction

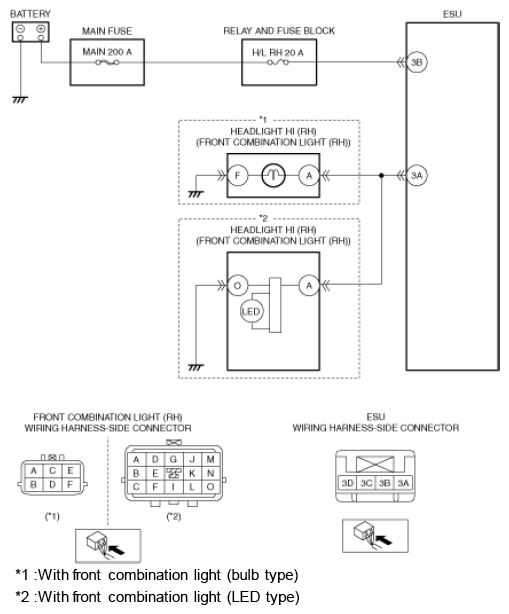

- Short to ground in wiring harness between front combination light (RH) terminal A and electrical supply unit (ESU) terminal 3A
- Front combination light (RH) malfunction
- Electrical supply unit (ESU) malfunction
|
|
|
