DTC B1099-11; Parking Light (RH), Taillight (LH), Rear Side Marker Light (LH), Taillight (Liftgate) (LH)/(RH) Or License Plate Light (LH)/(RH) Circuit Malfunction: Notes
DTC B1099-11; PARKING LIGHT (RH), TAILLIGHT (LH), REAR SIDE MARKER LIGHT (LH), TAILLIGHT (LIFTGATE) (LH)/(RH) OR LICENSE PLATE LIGHT (LH)/(RH) CIRCUIT MALFUNCTION - DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Parking light (RH), taillight (LH), rear side marker light (LH), taillight (liftgate) (LH)/(RH) or license plate light (LH)/(RH) circuit malfunction |
| Detection condition |
- The electrical supply unit (ESU) detects a short to ground in the parking light (RH), taillight (LH), rear side maker light (LH), taillight (liftgate) (LH)/(RH) or license plate light (LH)/(RH) circuit.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Electrical supply unit (ESU) connector or terminal malfunction
- Parking light bulb (RH) malfunction
- Front combination light (RH) connector or terminal malfunction

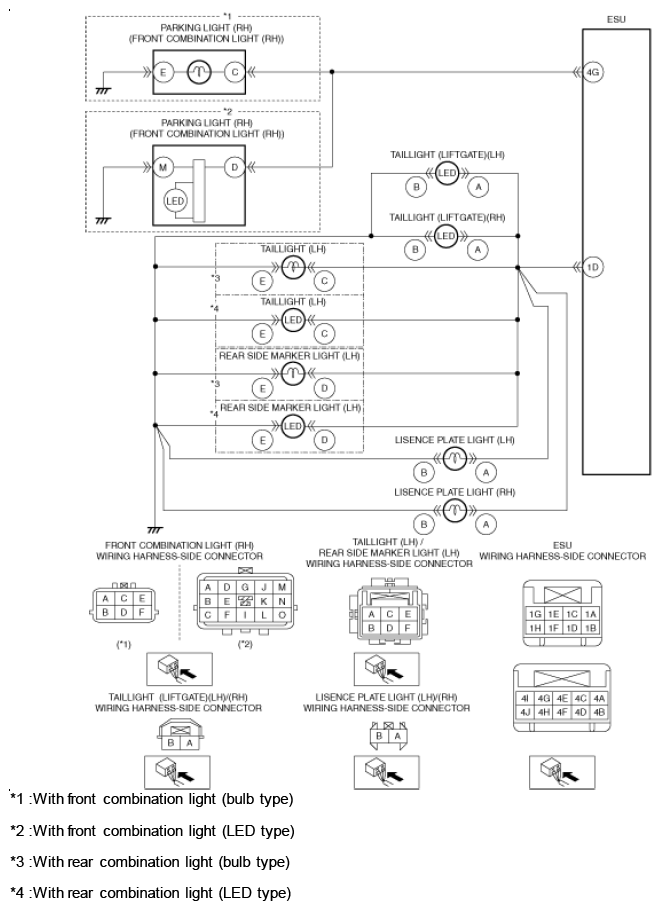

- Short to ground in wiring harness between the following terminals:
- Front combination light (RH) terminal C-Electrical supply unit (ESU) terminal 4G (With front combination light (bulb type))
- Front combination light (RH) terminal D-Electrical supply unit (ESU) terminal 4G (With front combination light (LED type))
- Front combination light (RH) malfunction
- Taillight bulb (LH) malfunction
- Rear side marker light bulb (LH) malfunction
- License plate light bulb (LH) malfunction
- License plate light bulb (RH) malfunction
- Taillight (LH) connector or terminal malfunction
- Rear side marker light (LH) connector or terminal malfunction
- Taillight (liftgate light) (LH) connector or terminal malfunction
- Taillight (liftgate light) (RH) connector or terminal malfunction
- License plate light (LH) connector or terminal malfunction
- License plate light (RH) connector or terminal malfunction
- Short to ground in wiring harness between the following terminals:
- Taillight (LH) terminal C-Electrical supply unit (ESU) terminal 1D
- Rear side marker light (LH) terminal D-Electrical supply unit (ESU) terminal 1D
- License plate light (LH) terminal A-Electrical supply unit (ESU) terminal 1D
- License plate light (RH) terminal A-Electrical supply unit (ESU) terminal 1D
- Taillight (liftgate light) (LH) terminal A-Electrical supply unit (ESU) terminal 1D
- Taillight (liftgate light) (RH) terminal A-Electrical supply unit (ESU) terminal 1D
- Taillight (liftgate light) (LH) malfunction
- Taillight (liftgate light) (RH) malfunction
- Rear combination light (LH) malfunction
- Electrical supply unit (ESU) malfunction
|
|
|
