DTC B1098-11; Parking Light (LH) Or Taillight (RH) Or Rear Side Marker Light (RH) Circuit Malfunction: Notes
DTC B1098-11; PARKING LIGHT (LH) OR TAILLIGHT (RH) OR REAR SIDE MARKER LIGHT (RH) CIRCUIT MALFUNCTION - DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Parking light (LH) or taillight (RH) or rear side marker light (RH) circuit malfunction |
| Detection condition |
- The electrical supply unit (ESU) detects a short to ground in the parking light (LH) or taillight (RH) or rear side marker light (RH) circuit.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Electrical supply unit (ESU) connector or terminal malfunction
- Parking light bulb (LH) malfunction
- Front combination light (LH) connector or terminal malfunction

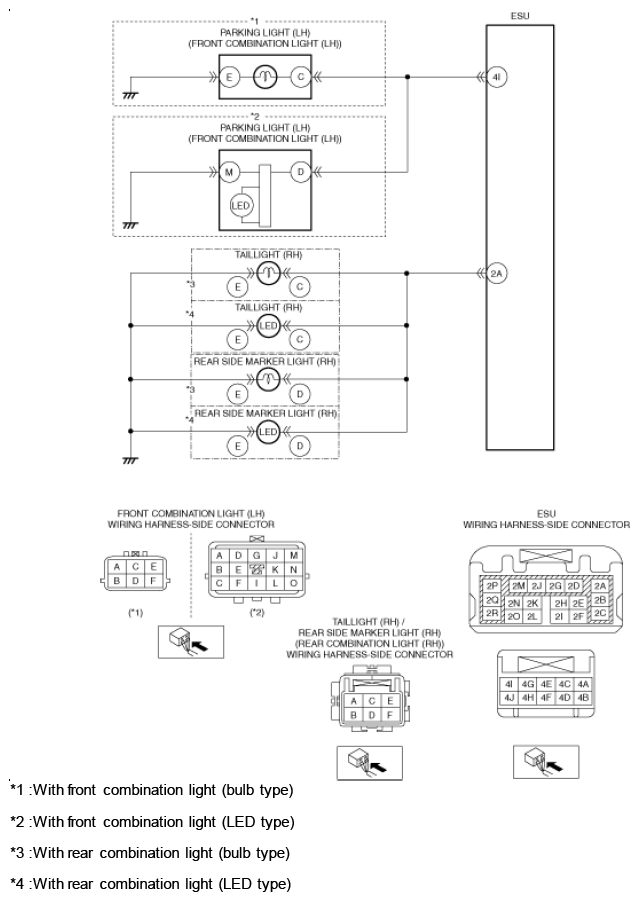

- Short to ground in wiring harness between the following terminals:
- Front combination light (LH) terminal C-Electrical supply unit (ESU) terminal 4I (With front combination light (bulb type))
- Front combination light (LH) terminal D-Electrical supply unit (ESU) terminal 4I (With front combination light (LED type))
- Front combination light (LH) malfunction
- Taillight bulb (RH) malfunction
- Taillight (RH) connector or terminal malfunction
- Rear side marker light bulb (RH) malfunction
- Rear side marker light (RH) connector or terminal malfunction
- Short to ground in wiring harness between the following terminals:
- Taillight (RH) terminal C-Electrical supply unit (ESU) terminal 2A
- Rear side marker light (RH) terminal D-Electrical supply unit (ESU) terminal 2A
- Rear combination light (RH) malfunction
- Electrical supply unit (ESU) malfunction
|
|
|
