Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Communication Devices
>>
On-Board Diagnostic - Connectivity Master Unit
>>
On-Board Diagnostic Wiring Diagram [Connectivity Master Unit]
>>
With Bose®
With Bose®

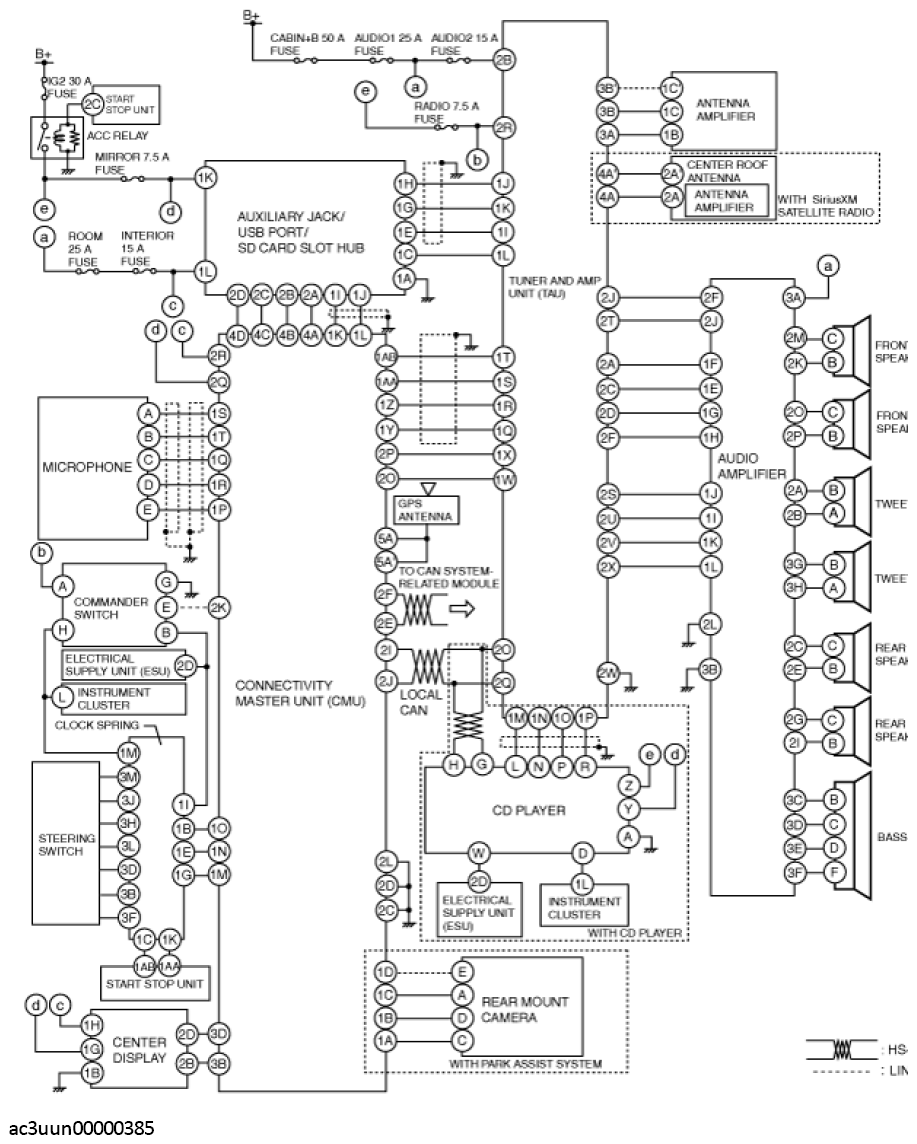

Fig 1: On-Board Diagnostic [Connectivity Master Unit] Wiring Diagram - With Bose
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
