Trunk End Trim Removal/Installation

  1. Remove the following parts:
    1. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    2. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    3. Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION .)
  2. Partially peel back the seaming welt.
  3. Remove fasteners.

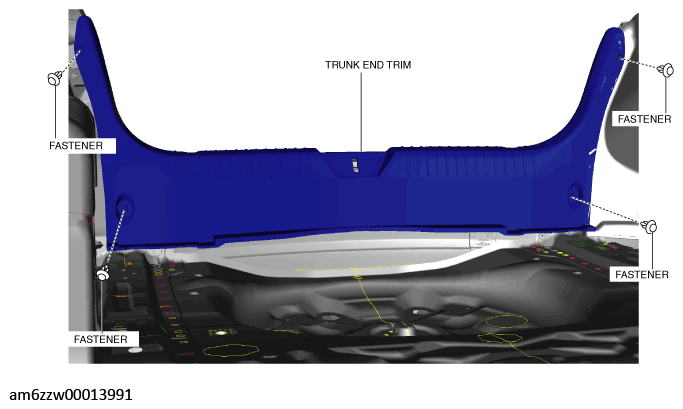

    Fig 1: Removing Trunk End Trim Fasteners
    G11544621Courtesy of MAZDA MOTORS CORP.
  4. Pull the trunk end trim in the direction of the arrow in the order of (1), (2) shown in the figure while detaching clips, pins, and guides.

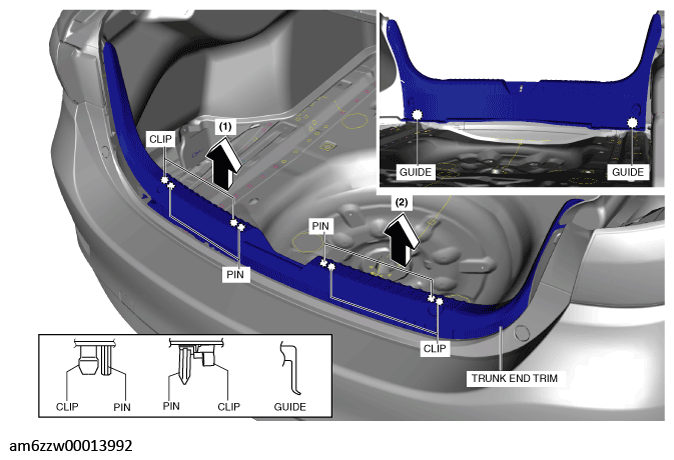

    Fig 2: Removing Trunk End Trim With Clips, Pins And Guides
    G11544622Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
