Third-Row Seat Back Component Removal/Installation

  1. Remove the following parts:
    1. Third-row seat cushion (Refer to THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION .)
    2. Trunk covering (Refer to TRUNK COVERING REMOVAL/INSTALLATION .)
    3. Trunk board (Refer to TRUNK BOARD REMOVAL/INSTALLATION .)
    4. Trunk side pocket (Refer to TRUNK SIDE POCKET REMOVAL/INSTALLATION
  2. Move the tabs in the direction of the arrows shown in the figure, and remove the cover.

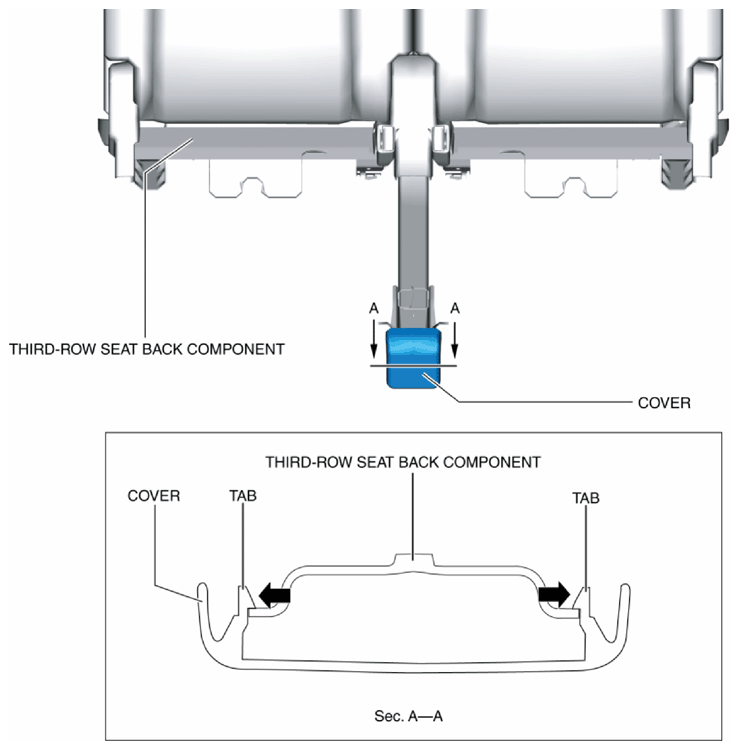

    Fig 1: Removing Third-Row Seat Back Component Tabs
    G10949687Courtesy of MAZDA MOTORS CORP.
  3. Remove the bolts.

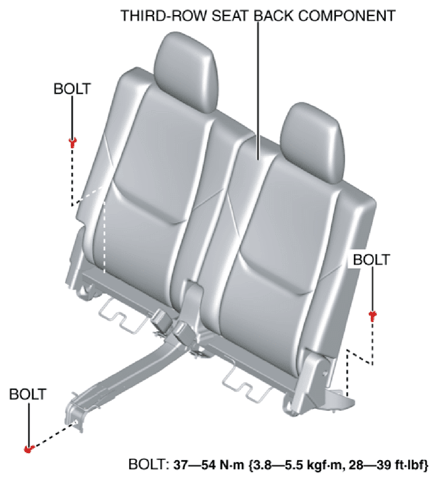

    Fig 2: Identifying Third-Row Seat Back Component Bolts With Torque Specification
    G10949688Courtesy of MAZDA MOTORS CORP.
  4. Remove the third-row seat back component.
  5. Install in the reverse order of removal.
