Power Liftgate (PLG) Rear Switch Removal/Installation

Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Insert remover tool into the position shown in the figure, and detach the cover tab from the liftgate.

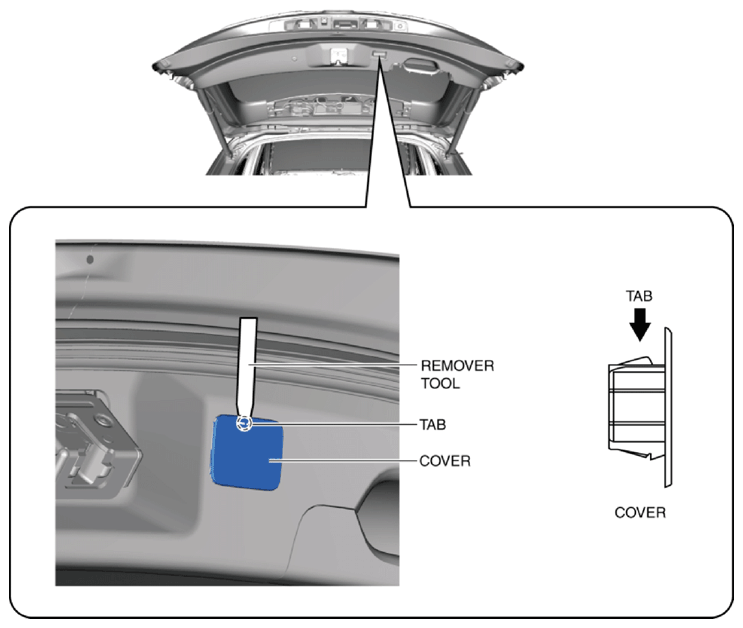

Fig 1: Detaching Cover Tab From Liftgate
Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.

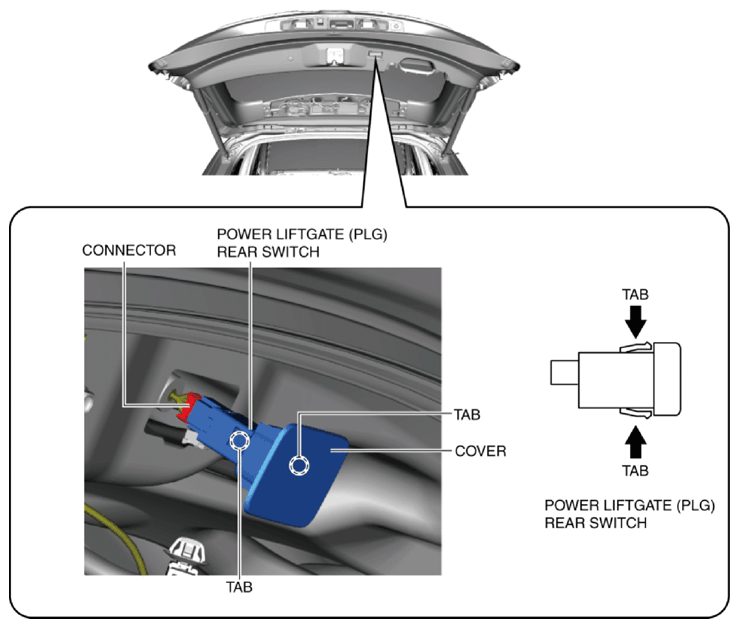

Fig 2: Locating PLG Rear Switch Tabs
Courtesy of MAZDA MOTORS CORP.
Press the power liftgate (PLG) rear switch tabs in the direction of the arrow shown in the figure and detach the power liftgate (PLG) rear switch from the cover.
Remove the power liftgate (PLG) rear switch.
Install in the reverse order of removal.
