Instrumentation/Driver Info. Location Index: Exterior

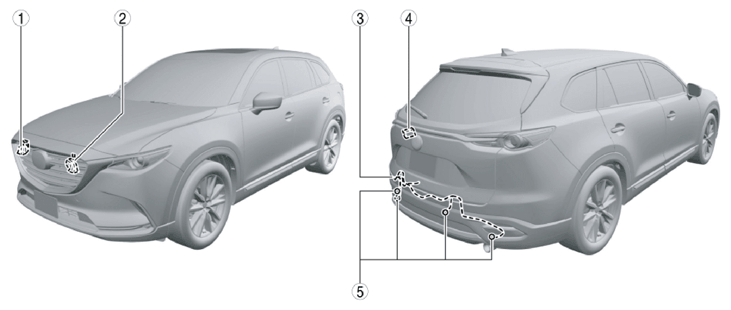

Fig 1: Instrumentation/Driver Information Related Components - Exterior

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Horn HI (See HORN REMOVAL/INSTALLATION .) (See HORN INSPECTION .)
2	Horn LO (See HORN REMOVAL/INSTALLATION .) (See HORN INSPECTION .)
3	Ultrasonic sensor short-cord (With parking sensor system) (See ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION .) (See ULTRASONIC SENSOR SHORT-CORD INSPECTION .)
4	Parking sensor buzzer (With parking sensor system) (See PARKING SENSOR BUZZER REMOVAL/INSTALLATION .) (See PARKING SENSOR BUZZER INSPECTION .)
5	Ultrasonic sensor (With parking sensor system) (See ULTRASONIC SENSOR REMOVAL/INSTALLATION .)
