Warning/Indicator Light Illumination Inspection

Connect the M-MDS to the DLC-2.
After vehicle identification, select the following from the M-MDS initialization screen.
1. Select "Data logger"
2. Select "Module"
3. Select "IC"

Using the simulation function WL+IL, verify that the warning/indicator lights in the following table are illuminated.

If any of the warning/indicator lights are not displayed, replace the instrument cluster. (Refer to INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)

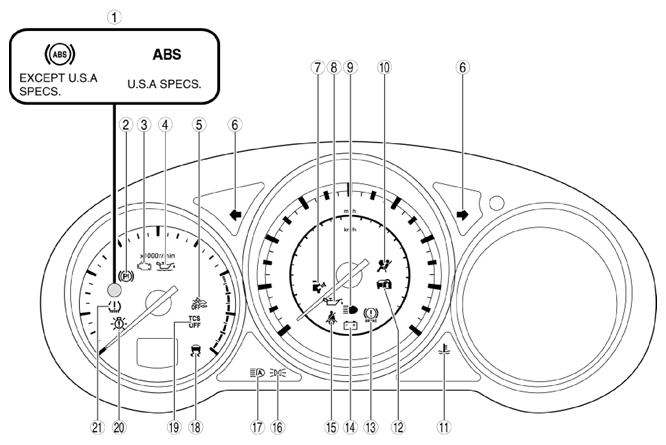

Fig 1: Identifying Warning/Indicator Lights - With Multi-Information Display
Courtesy of MAZDA MOTORS CORP.

X: Applicable -: Not applicable
No.	Warning light/Indicator light	Name	Message is displayed in multi-information display when warning/indicator light turns on/flashes	Message is displayed in center display when warning/indicator light turns on/flashes	Comment	Warning/indicator light turned on when ignition is switched ON (engine off or on)
1		ABS warning light	-	X	-	X
2		Electric parking brake warning light	X	-	-	-
3		Check engine light	-	X	-	X
4		Engine oil level warning light	X	X	-	-
5		Smart brake support/smart city brake support (SBS/SCBS) OFF indicator light	-	-	With SBS/SCBS	X
6		Turn signal/hazard warning indicator lights	-	-	-	-
7		Check fuel cap warning light	X	X	-	X
8		Engine oil warning light	-	X	-	X
9		Headlight high-beam indicator light	-	-	-	-
10		Air bag/front seat belt pretensioner system warning light	-	X	-	X
11		Low engine coolant temperature indicator light (blue)/high engine coolant temperature warning light (red)	X	X	-	X
12		Security indicator light	-	-	-	X
13		Brake system warning light	-	X	-	X
14		Charging system warning light	X	X	-	X
15		Seat belt warning light	-	-	-	-
16		Lights-on indicator light	X	-	-	-
17		HBC indicator light (green)/HBC warning light (amber)	X	X	With high beam control (HBC) system	X
18		TCS/DSC indicator light	-	X	-	X
19	TCS OFF	TCS OFF indicator light	-	-	-	X
20		LED headlight warning light	-	X	-	-
21		Tire pressure monitoring system warning light	X	X	With TPMS	X

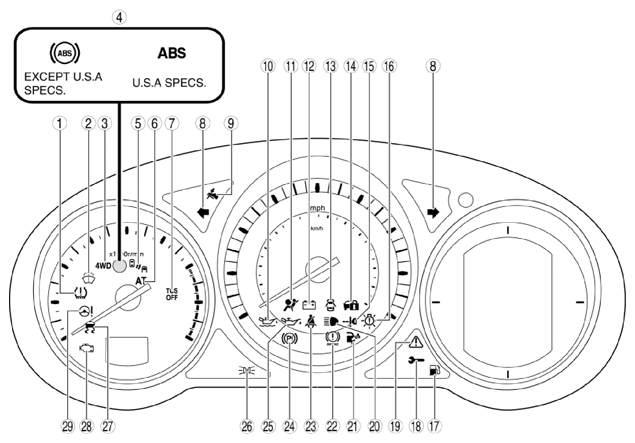

Fig 2: Identifying Warning/Indicator Lights - Without Multi-Information Display

Courtesy of MAZDA MOTORS CORP.

X: Applicable -: Not applicable
No.	Warning light/Indicator light	Name	Message is displayed in center display when warning/indicator light turns on/flashes	Comment	Warning/indicator light turned on when ignition is switched ON (engine off or on)
1		Tire pressure monitoring system warning light	X	With TPMS	X
2		Low washer fluid level warning light	X	With washer fluid-level sensor	-
3	4WD	AWD warning light	X	AWD	X
4		ABS warning light	X	-	X
5		Blind spot monitoring (BSM) warning light	X	With BSM	X
6	AT	Automatic transaxle warning light	X	-	X
7	TCS OFF	TCS OFF indicator light	-	-	X
8		Turn signal/hazard warning indicator lights	-	-	-
9		Brake pedal operation demand indicator light	-	-	-
10		Engine oil level warning light	X	-	-
11		Air bag/front seat belt pretensioner system warning light	X	-	X
12		Charging system warning light	X	-	X
13		Door-ajar warning light	-	-	-
14		Security indicator light	-	-	X
15		KEY warning light (red)/KEY indicator light (green)	X	-	X
16		LED headlight warning light	X	-	-
17		Low fuel warning light	X	-	-
18		Wrench indicator light	X	-	X
19		Master warning light	X	-	X
20		Headlight high-beam indicator light	-	-	-
21		Check fuel cap warning light	X	-	X
22		Brake system warning light	X	-	X
23		Seat belt warning light	-	-	-
24		Electric parking brake warning light	-	-	-
25		Engine oil warning light	X	-	X
26		Lights-on indicator light	-	-	-
27		TCS/DSC indicator light	X	-	X
28		Check engine light	X	-	X
29		Power steering malfunction indicator light	X	-	X
