Horn LO

  1. Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the front bumper. (Refer to FRONT BUMPER REMOVAL .) (Refer to FRONT BUMPER INSTALLATION .)
  3. Disconnect the connector.

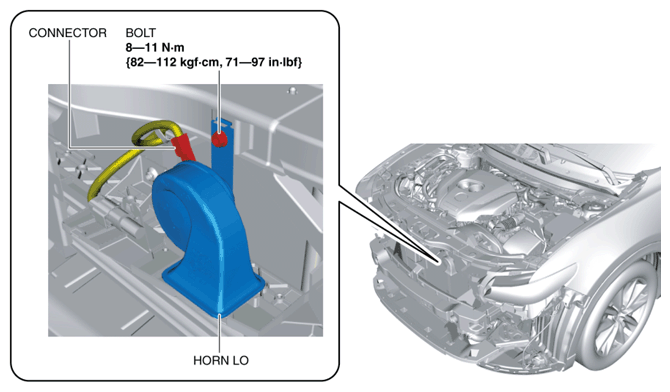

    Fig 1: Identifying Low Horn, Connector And Bolt With Torque Specification
    G10950883Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolt.
  5. Remove the horn LO.
  6. Install in the reverse order of removal.
