Forward Sensing Camera (FSC) Removal/Installation

CAUTION:

If configuration is not performed when the FSC is replaced with a new one, the vehicle specification information is not stored in the FSC and the system will not operate normally.
When performing configuration, it is necessary to read the vehicle specification information from the FSC before replacing it. Connect the M-MDS to the vehicle and perform vehicle identification before removing the FSC. The vehicle specification information is temporarily stored in the M-MDS.

NOTE:

The FSC prior to replacement stores the vehicle specification information.
A new FSC does not store any vehicle specification information.
If the vehicle specification information from the FSC prior to replacement cannot be read, perform the configuration using As-Built data.

When replacing the FSC, perform the configuration. (Refer to FORWARD SENSING CAMERA (FSC) CONFIGURATION (USING READ/WRITE FUNCTION) .)
Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Sensor cover (Refer to SENSOR COVER REMOVAL/INSTALLATION .)
2. Rearview mirror (Refer to AUTO-DIMMING REARVIEW MIRROR REMOVAL/INSTALLATION .) (Refer to REARVIEW MIRROR REMOVAL/INSTALLATION .)
3. Forward sensing camera (FSC) short-cord (Refer to FORWARD SENSING CAMERA (FSC) SHORT-CORD REMOVAL/INSTALLATION .)

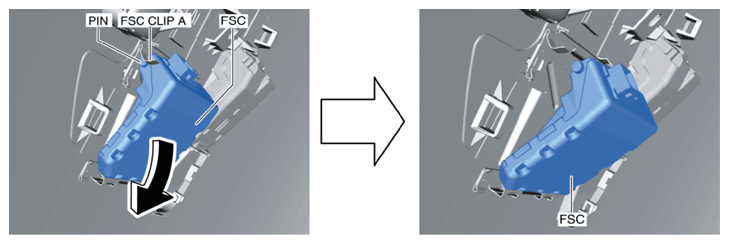

Pull the FSC in the direction of the arrow shown in the figure and remove the FSC pin from FSC clip A.

Fig 1: Removing FSC Pin From FSC Clip A
Courtesy of MAZDA MOTORS CORP.

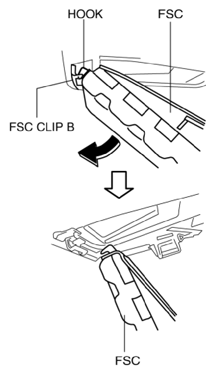

Rotate the FSC in the direction of the arrow shown in the figure, remove the FSC hook from FSC clip B, and remove the FSC.

Fig 2: Removing FSC Hook From FSC Clip B
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
NOTE:
- If configuration cannot be performed by reading/writing of the vehicle specification information, perform the configuration using As-Built information after replacing the FSC. (Refer to FORWARD SENSING CAMERA (FSC) CONFIGURATION (USING AS-BUILT DATA) .)
If the FSC is replaced, perform the FSC aiming (Refer to FORWARD SENSING CAMERA (FSC) AIMING ).
CAUTION:
- If FSC aiming is not performed after replacing the FSC, the related systems controlled by the FSC will not operate because the FSC cannot store the camera shot angle. If the FSC is replaced, perform the FSC aiming.
