Transfer oil seal (RH) No. 3

  1. Drain the transfer oil. (Refer to TRANSFER OIL REPLACEMENT .)
  2. Remove the front drive shaft (RH). (Refer to FRONT DRIVE SHAFT REMOVAL/INSTALLATION .)
  3. Remove the transfer oil seal (RH) No. 1. (Refer to TRANSFER OIL SEAL (RH) NO. 1 .)
  4. Remove the oil seals using a tape-wrapped flathead screwdriver.

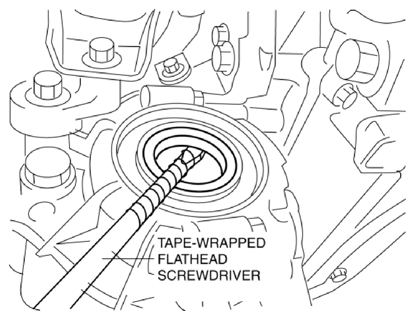

    Fig 1: Removing Oil Seals Using Tape-Wrapped Flathead Screwdriver
    G10947620Courtesy of MACK TRUCKS, INC.
  5. Using the SST  and a hammer, tap the new seal into place.

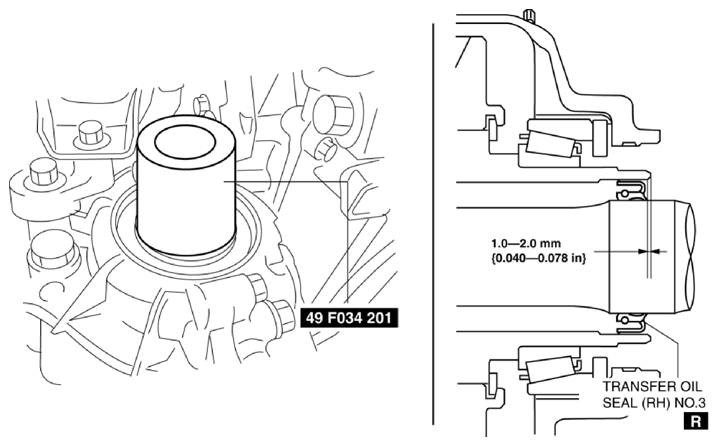

    Fig 2: Tapping Seal Into Place Using SST And Hammer
    G10947621Courtesy of MACK TRUCKS, INC.
  6. Apply the lip of the oil seal with transfer oil.
  7. Install the transfer oil seal (RH) No. 1. (Refer to TRANSFER OIL SEAL (RH) NO. 1 .)
  8. Install the front drive shaft (RH). (Refer to FRONT DRIVE SHAFT REMOVAL/INSTALLATION .)
  9. Add the specified amount and type of oil. (Refer to TRANSFER OIL REPLACEMENT .)
