Transfer oil seal (RH) No. 2

  1. Drain the transfer oil. (Refer to TRANSFER OIL REPLACEMENT .)
  2. Remove the front drive shaft (RH). (Refer to FRONT DRIVE SHAFT REMOVAL/INSTALLATION .)
  3. Remove the transfer oil seal (RH) No. 1. (Refer to TRANSFER OIL SEAL (RH) NO. 1 .)
  4. Insert a tape-wrapped flathead screwdriver into the lip area of the oil seal (RH) No. 2 as shown in the figure and remove the oil seal (RH) No. 2.

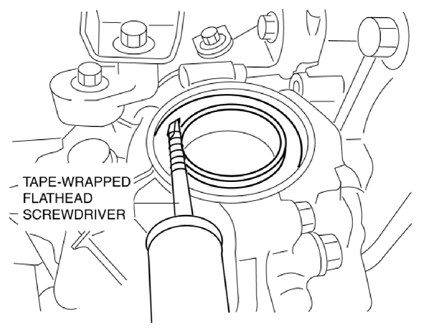

    Fig 1: Inserting Tape-Wrapped Flathead Screwdriver Into Lip Area Of Oil Seal (RH) No. 2
    G10947618Courtesy of MACK TRUCKS, INC.
  5. Using the SST  and a hammer, tap the new seal into place.

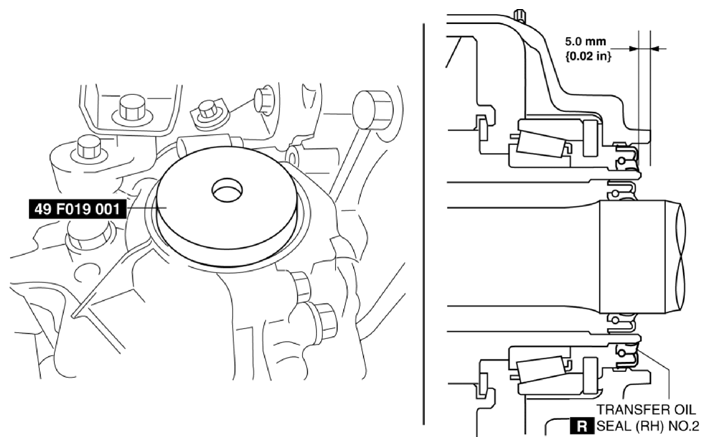

    Fig 2: Tapping Seal Into Place Using SST And Hammer
    G10947619Courtesy of MACK TRUCKS, INC.
  6. Apply the lip of the oil seal with transfer oil.
  7. Install the transfer oil seal (RH) No. 1. (Refer to TRANSFER OIL SEAL (RH) NO. 1 .)
  8. Install the front drive shaft (RH). (Refer to FRONT DRIVE SHAFT REMOVAL/INSTALLATION .)
  9. Add the specified amount and type of oil. (Refer to TRANSFER OIL REPLACEMENT .)
