Charge Air Cooler Outlet Hose Removal Note

  1. Release the lock of connector and remove the charge air cooler outlet hose.

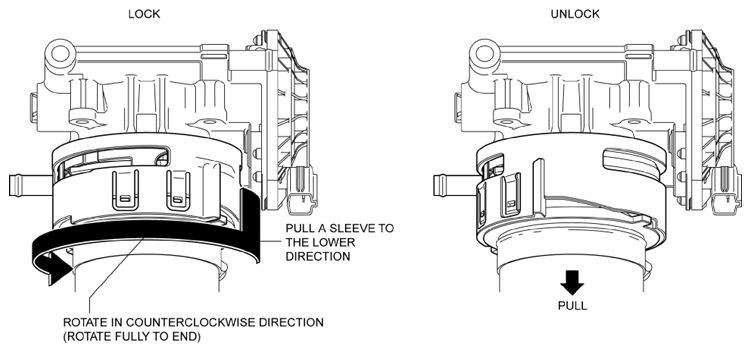

    Fig 1: Rotating Charge Air Cooler Outlet Hose Sleeve
    G10946764Courtesy of MAZDA MOTORS CORP.
