Intake-Air System Removal/Installation
>>
Charge Air Cooler Outlet Hose Installation Note
Charge Air Cooler Outlet Hose Installation Note

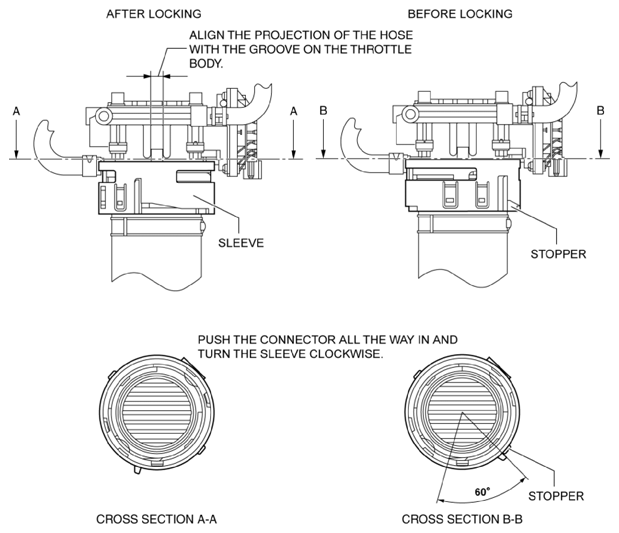

Install the charge air cooler outlet hose as shown in the figure.
Fig 1: Installing Charge Air Cooler Outlet Hose
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
