Three Way Solenoid Valve Removal/Installation: Notes
- Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the plug hole plate. (Refer to PLUG HOLE PLATE REMOVAL/INSTALLATION .)

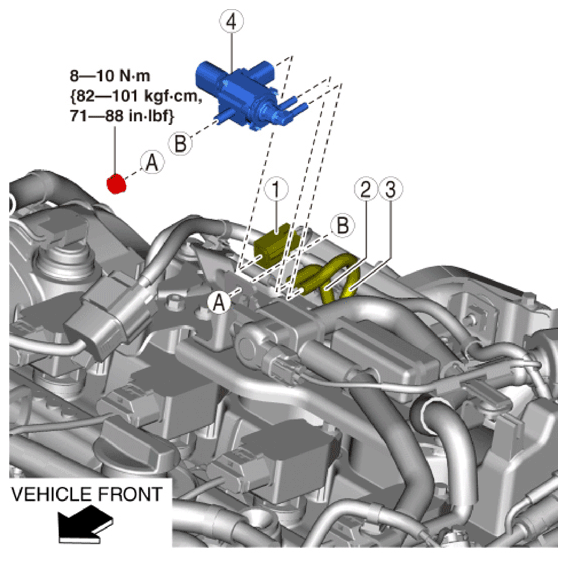

- Remove in the order indicated in the table.COMPONENT DESCRIPTION
1 Connector 2 Vacuum hose No. 1
(See Vacuum Hose Installation Note .)3 Vacuum hose No. 2
(See Vacuum Hose Installation Note .)4 Three way solenoid valve - Install in the reverse order of removal.
