Continuity Inspection
- Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the three way solenoid valve. (Refer to THREE WAY SOLENOID VALVE REMOVAL/INSTALLATION .)

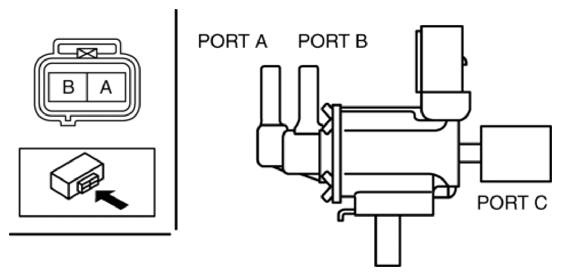

- Inspect airflow between the ports under the following conditions.
Measured condition Continuity between nipples A-B Continuity between nipples B-C Continuity between nipples A-C When voltage is not applied No airflow Airflow detected No airflow When voltage is applied Airflow detected No airflow No airflow - If not as specified, replace the three way solenoid valve. (Refer to THREE WAY SOLENOID VALVE REMOVAL/INSTALLATION .)
